Esso Lutece - (1964-198?)
Push tow "ESSO LUTECE"
The old and new in European river equipment are depicted as the Mississippi-type push tow
"ESSO LUTECE" passes a self-propelled barge on the outskirts of Paris.

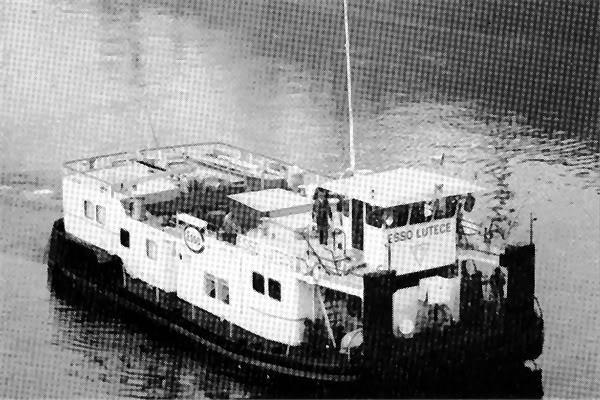

Photo above, shows the French boat's compact design.

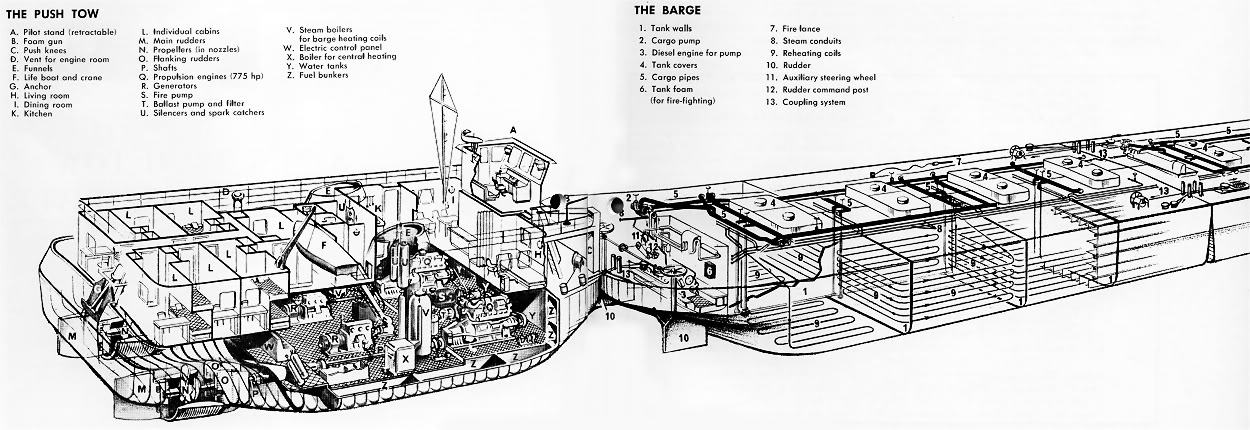

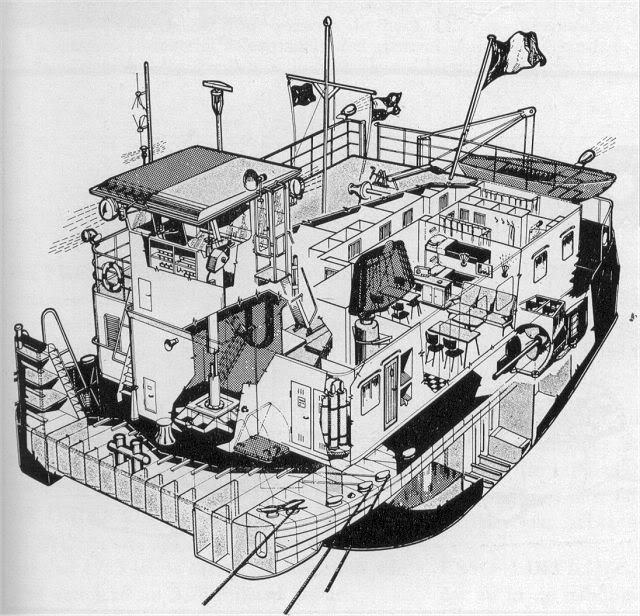

Drawing.

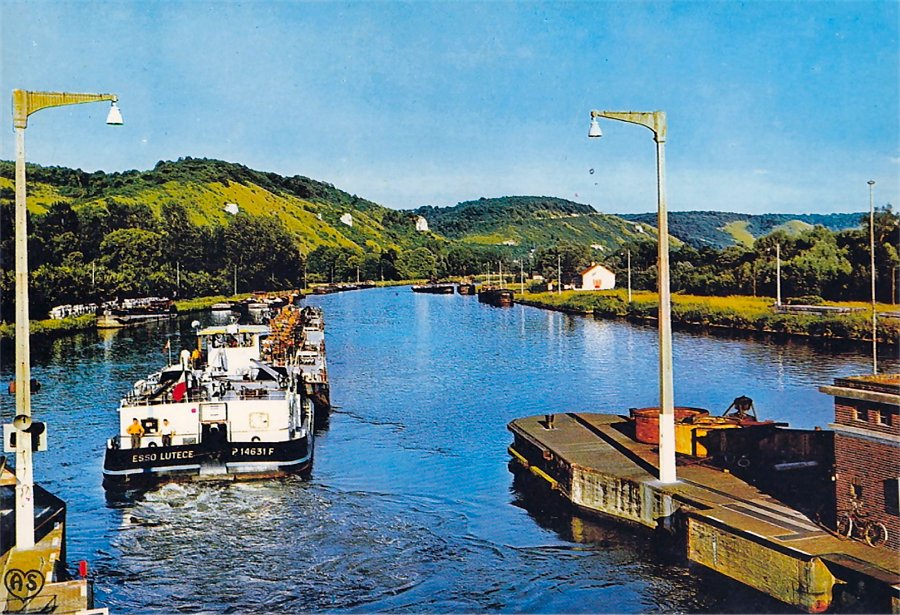

"Esso Lutece".

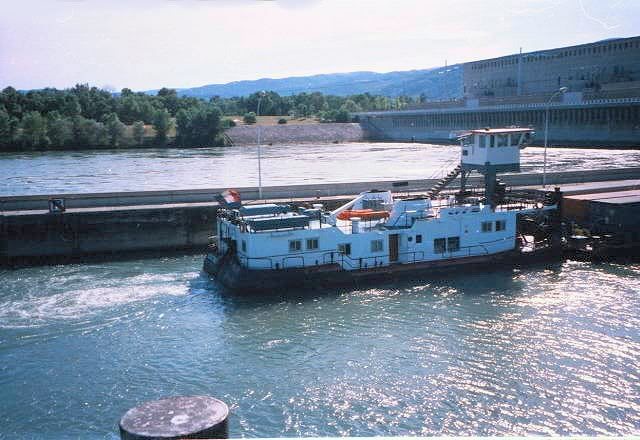

"Esso Lutece".

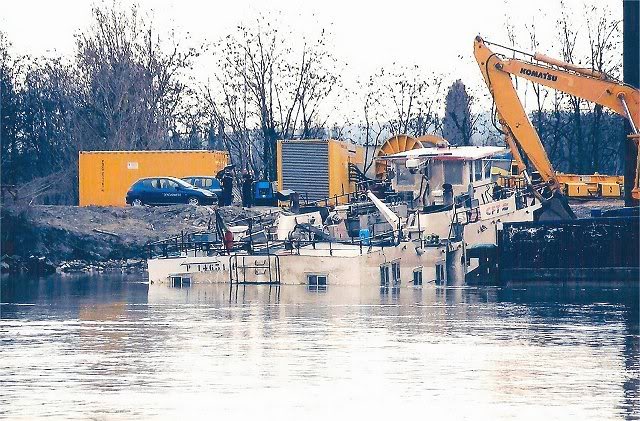

"Redoutable", ex. "Esso Lutece", sunken on the Rhone.
( Photo thanks to Jan Verduin )

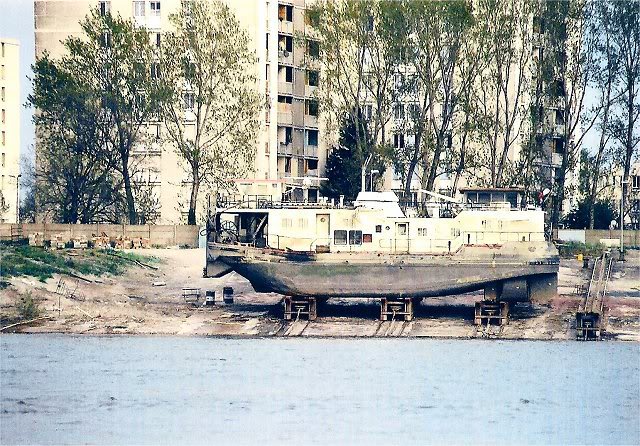

"Redoutable" on the yard for inspection, later scrapped.
( Photo thanks to Jan Verduin )
Principil Caracteristics;
|
Esso Lutece
|
Esso L1
|
Esso L2
|
Esso L3
|
Type:
|
Push-Tug
|
Barge
|
Barge
|
Barge
|
Length:
|
22 mtr.
|
45 mtr.
|
48 mtr.
|
45 mtr.
|
Width:
|
9.00 mtr.
|
11.40 mtr.
|
11.40 mtr.
|
11.40 mtr.
|
Draft:
|
2.10 mtr. ( Max.)
|
3.50 mtr.
|
3.50 mtr.
|
3.50 mtr.
|
Dwtons
|
-
|
1640
|
1370
|
1640
|
Engines:
|
2 x Caterpillar
|
-
|
-
|
-
|
Power:
|
2 x 760 shp
|
-
|
-
|
-
|
Propellers:
|
2 x in Kort- Nozzle
|
-
|
-
|
-
|
Diameter:
|
1.82 Mtr.
|
-
|
-
|
-
|
Build:
|
1965
|
-
|
-
|
|
Builder:
|
De Biesbosch , Dordrecht, Holland
|
De Biesbosch , Dordrecht, Holland
|
De Biesbosch , Dordrecht, Holland
|
De Biesbosch , Dordrecht, Holland
|
Additional Information :
Esso Lutece - 1964.
Pusher
L 22,00 m, B 9,50 m, D 2,10 m (2,70)
2 screws, 2 x diesel, 1520 bhp total
ESSO LUTÈCE
1964: Built by Scheepswerf & Machinefabriek "De Biesbosch NV" at Dordrecht (NLD) (YN 454)
1964: delivered to "Esso Standard Francaise SA" at Paris (FRA)
198x: To "CFT - Cie Fluviale de Transport" at Lyon (FRA), renamed "REDOUTABLE".
2004 -xx/01: sank on the Rhône (FRA), raised and broken up.
Pusher tug : ESSO LUTECE ( ?? )
Scheepsgegevens :
Scheepstype
|
Motorduwboot
|
ENI-nummer
|
Onbekend
|
Bouwjaar
|
1964
|
Bouwwerf
|
De Biesbosch in Dordrecht
|
Bouwnummer
|
454
|
Tonnage
|
87
|
Afmetingen
|
22.00 x 7.50 x 2.10
|
Voortstuwing
|
2 x 550 pk Sacm
|
Afgevoerd in
|
2004-sank on the Rhône (FRA), raised and broken up.
|
Mutaties :
Mutatiedatum
|
1964
|
Naam
|
ESSO LUTECE
|
Eigenaar
|
Esso Standaard Francaise SA in Paris
|
Rederij
|
Esso
|
Naam
|
REDAUTABLE
|
Eigenaar
|
Cie Fluv de Transports in Le Havre
|
Naam
|
REDOUTABLE
|
Eigenaar
|
CFT in Lyon
|
Rederij
|
CFT
|
