Hercules (2)
See also : Hero & World Phoenix

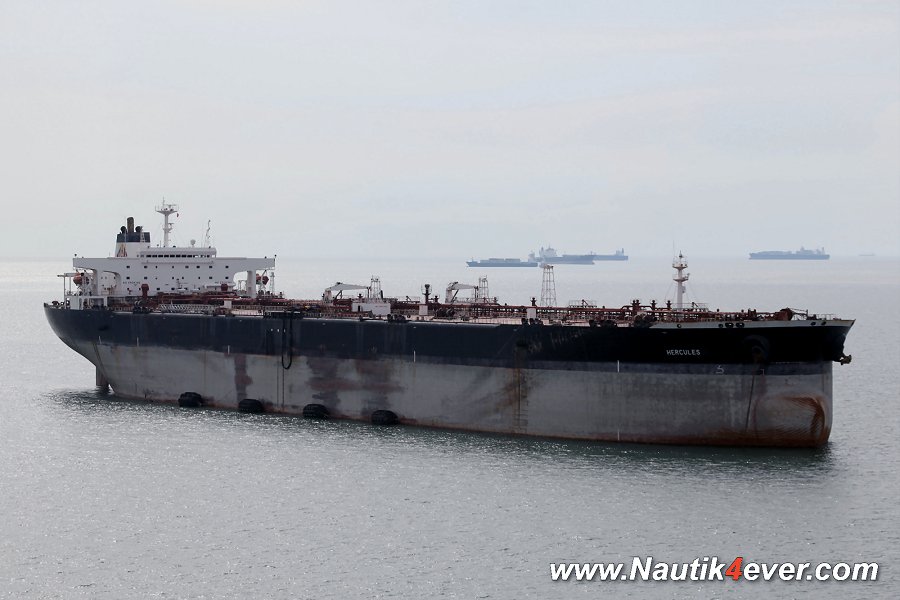

"FSO Hercules", at Tanjung Pelepas, Malaysia, March 26th 2012.
( Photo Copyright Bodolinsky )

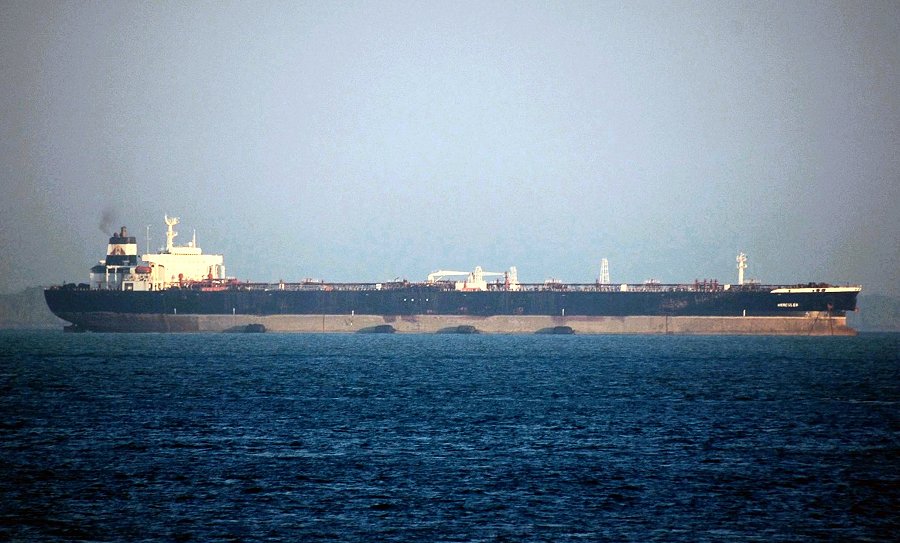

"FSO Hercules", at Singapore, December 28th 2012.
( Photo Copyright Gerolf Drebes )

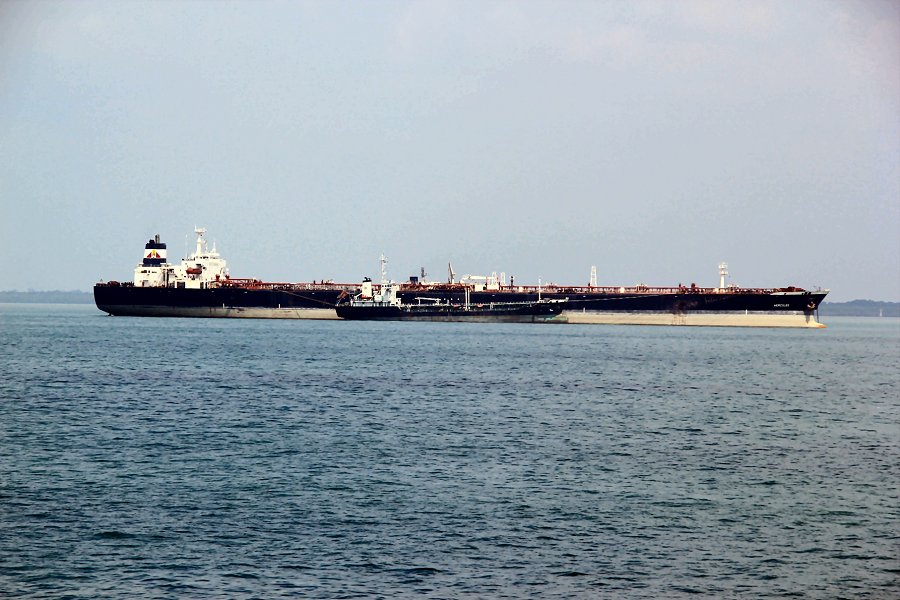

"FSO Hercules", at Singapore, October 10th, 2011.( Photo Copyright Michael Schindler )

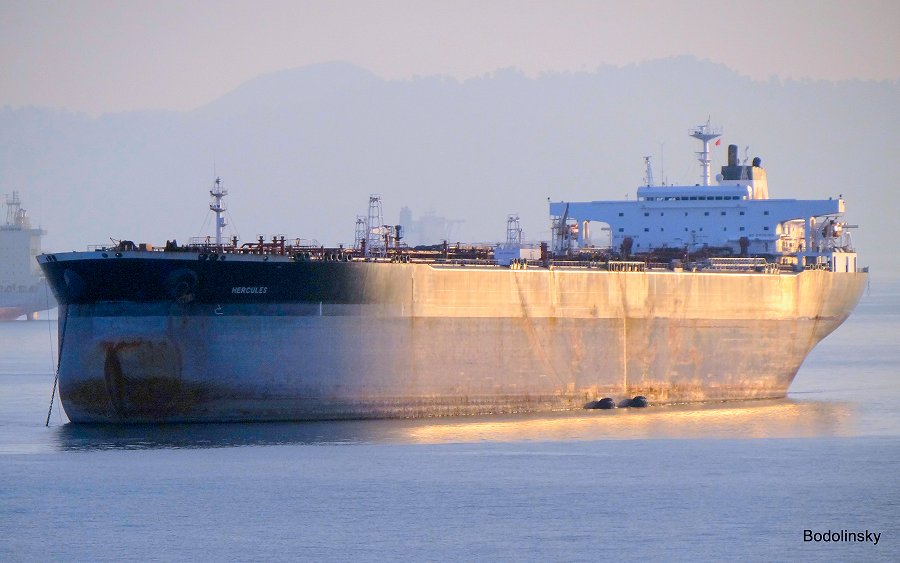

"FSO Hercules", at Singapore Strait, December 26th, 2010.( Photo Copyright Vladimir Knyaz )
CONCORD
|
IMO NUMBER
|
8614417
|
VESSEL TYPE
|
OIL PRODUCTS TANKER
|
HULL TYPE
|
SINGLE HULL
|
GROSS TONNAGE
|
143.941 tons
|
SUMMER DWT
|
276.052 tons
|
BUILD
|
1988
|
BUILDER
|
DSME SEOUL - SOUTH KOREA
|
FLAG
|
PANAMA
|
MANAGER/OWNER
|
DYNACOM TANKERS MANAGEMENT ATHENS - GREECE
|
INSURER
|
NORTH OF ENGLAND P&I U.K.
|
VESSEL DETAILS
|
||
CLASSIFICATION
|
1A1 TANKER FOR OIL ESP E0
|
|
|
LAST DRY DOCK
|
2006 Jul 11
|
|
LAST SPECIAL SURVEY
|
2006 Jul 11
|
GENERIC
|
SPEED
|
14,0 knots
|
DIMENSIONS
|
BOW TO BRIDGE
|
269,00 m
|
|
BREADTH EXTREME
|
56,00 m
|
|
BREADTH MOULDED
|
56,00 m
|
|
DEPTH
|
29,50 m
|
|
DRAUGHT
|
21,02 m
|
|
FREEBOARD
|
8.480,0 mm
|
|
KEEL TO MASTHEAD
|
57,50 m
|
|
LENGTH B/W PERPENDICULARS
|
310,00 m
|
|
LENGTH OVERALL
|
322,00 m
|
|
LENGTH REGISTERED
|
322,00 m
|
TONNAGES
|
NET TONNAGE
|
86.938 tons
|
LOADLINE
|
DEADWEIGHT (MAXIMUM ASSIGNED)
|
276.052 tons
|
|
DEADWEIGHT (NORMAL BALLAST)
|
94.553 tons
|
|
DEADWEIGHT (SEGREGATED BALLAST)
|
94.553 tons
|
|
DEADWEIGHT (TROPICAL)
|
283.197 tons
|
|
DEADWEIGHT (WINTER)
|
268.937 tons
|
|
DISPLACEMENT (LIGHTSHIP)
|
35.928 tons
|
|
DISPLACEMENT (NORMAL BALLAST)
|
130.481 tons
|
|
DISPLACEMENT (SEGREGATED BALLAST)
|
130.481 tons
|
|
DISPLACEMENT (SUMMER)
|
311.980 tons
|
|
DISPLACEMENT (TROPICAL)
|
319.125 tons
|
|
DISPLACEMENT (WINTER)
|
304.866 tons
|
|
DRAFT (LIGHTSHIP)
|
2,74 m
|
|
DRAFT (NORMAL BALLAST)
|
9,28 m
|
|
DRAFT (SEGREGATED BALLAST)
|
9,28 m
|
|
DRAFT (SUMMER)
|
21,02 m
|
|
DRAFT (TROPICAL)
|
21,46 m
|
|
DRAFT (WINTER)
|
20,59 m
|
|
DRAUGHT AFT (NORMAL BALLAST)
|
10,20 m
|
|
DRAUGHT FORE (NORMAL BALLAST)
|
8,00 m
|
|
FREEBOARD (LIGHTSHIP)
|
25,81 m
|
|
FREEBOARD (NORMAL BALLAST)
|
19,26 m
|
|
FREEBOARD (SEGREGATED BALLAST)
|
19,26 m
|
|
FREEBOARD (SUMMER)
|
7,52 m
|
|
FREEBOARD (TROPICAL)
|
7,08 m
|
|
FREEBOARD (WINTER)
|
7,96 m
|
|
FWA (SUMMER DRAFT)
|
472,0 mm
|
|
TPC IMMERSION (SUMMER DRAFT)
|
162,70 tons
|
CAPACITIES
|
BUNKER
|
6.775 tons
|
STRUCTURE
|
HULL MATERIAL
|
STEEL
|
COMMUNICATION
|
CALL SIGN
|
3EZS6
|
HISTORICAL INFO
|
DATE OF ORDER
|
1986 Nov 01
|
|
YARD NUMBER
|
5.017
|
FORMER NAMES
|
C. Concord - 2008
|
|
|
World Phoenix - 2002
|
|
LATER NAMES
|
Hercules (FSO) and HERO
|
Scrapped at Gadani in 2013
|
The Miramar Ship Index for "WORLD PHOENIX"
IDNo:
|
8614417
|
Year:
|
1988
|
Name:
|
WORLD PHOENIX
|
Keel:
|
16.11.1987
|
Type:
|
Tanker
|
Launch Date:
|
16.09.1988
|
Flag:
|
PAN
|
Date of completion:
|
10.12.1988
|
Tons:
|
143941
|
Link:
|
-
|
DWT:
|
276052
|
Yard No:
|
5017
|
Length overall:
|
322.0
|
Ship Design:
|
|
LPP:
|
310.0
|
Country of build:
|
KOR
|
Beam:
|
56.0
|
Builder:
|
Daewoo SB & HM
|
Material of build:
|
|
Location of yard:
|
Okpo
|
Number of screws/Mchy/Speed(kn):
|
1D-
|
|
|
Subsequent History:
2002 C. CONCORD - 2006 CONCORD -
[ 2010 conervted to FSO tanker ] -
2010 HERCULES - 13 HERO
Disposal Data:
Scrapped at Gadani Beach 18.08.2013, work began 21.08.2013.
History:
ON
|
LR/IMO
|
ID
|
Year
|
Name
|
Tons
|
Change
|
Registered Owner
|
|
8614417
|
8614417
|
1988
|
WORLD PHOENIX
|
143941
|
|
Swallow Co S.A.
|
|
8614417
|
8614417
|
1988
|
C. CONCORD
|
143941
|
2002
|
Swallow Co S.A.
|
|
8614417
|
8614417
|
1988
|
CONCORD
|
143941
|
2006
|
Dynacom Tankers
|
|
8614417
|
8614417
|
1988
|
HERCULES
|
143941
|
2010
|
?????
|
|
8614417
|
8614417
|
1988
|
HERO
|
143941
|
2013
|
?????
|
