Maersk Hakone
And see "MAERSK HAKONE" as : Hakone

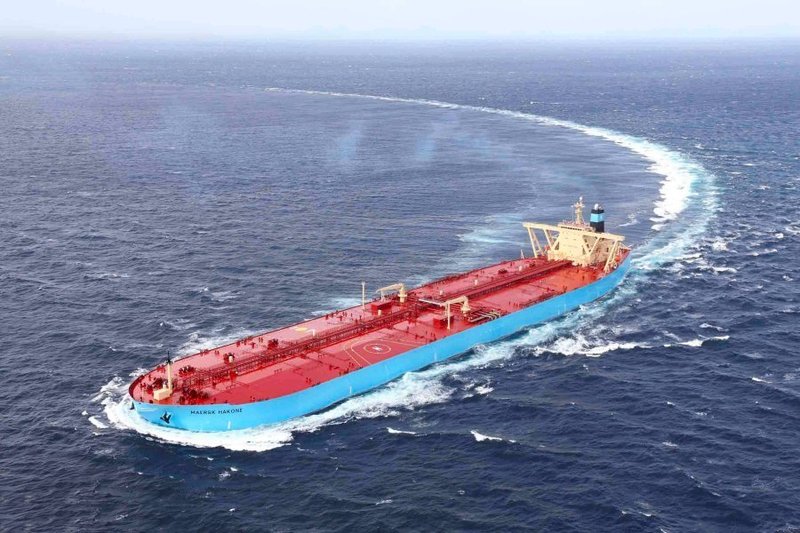

"Maersk Hakone", during sea Trails.
( Copyright reserved )

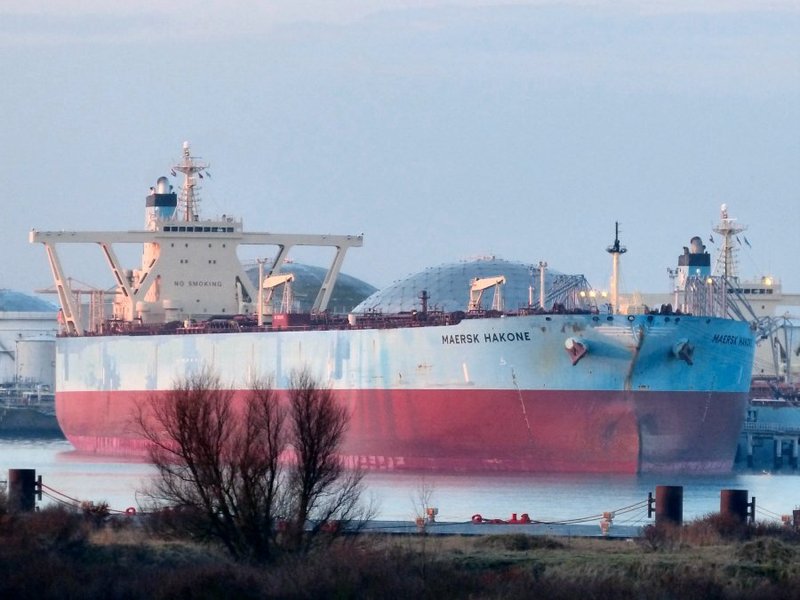

"Maersk Hakone", at Europoort, Rotterdam, March 4th, 2014.
( Photo Copyright Frans Sanderse )

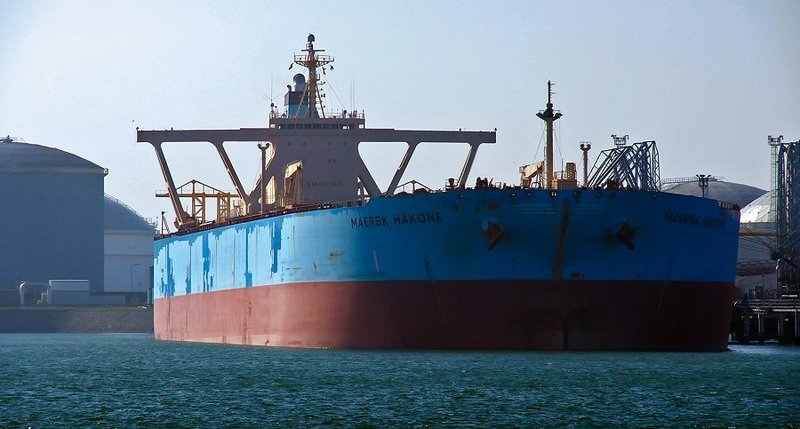

"Maersk Hakone", at Europoort, Rotterdam, March 5th, 2014.
( Photo Copyright Arjan Elmendorp )

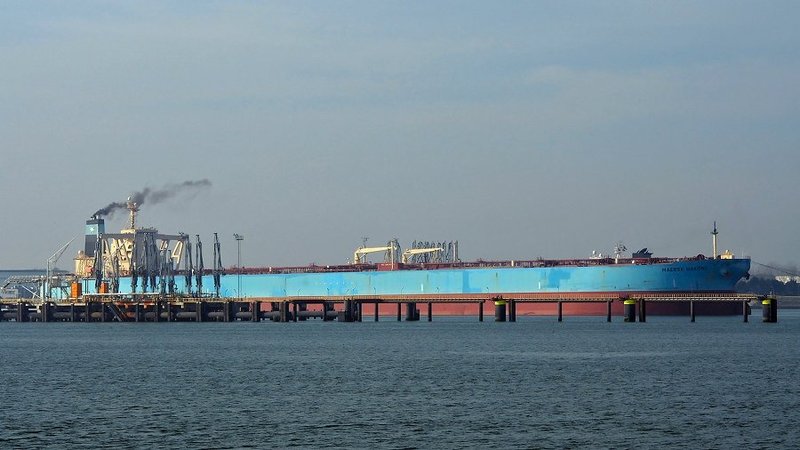

"Maersk Hakone", at Europoort, Rotterdam, March 9th, 2014.
( Photo Copyright Joop Klaasman )

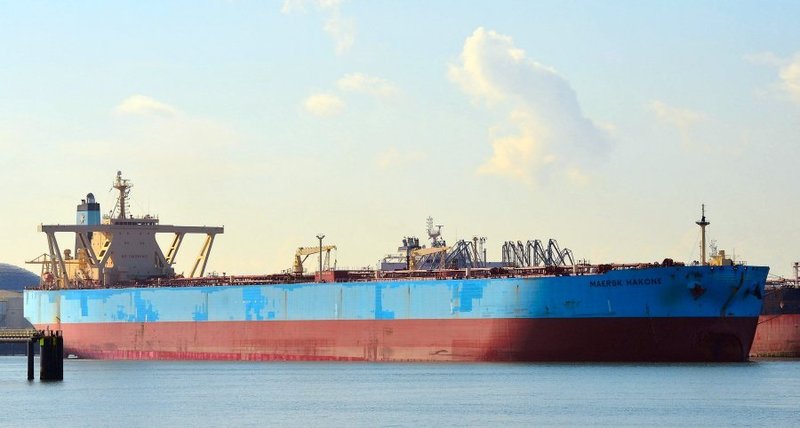

"Maersk Hakone", at Europoort, Rotterdam, March 9th, 2014.
( Photo Copyright Joop Klaasman )
The Miramar Ship Index for
|
MAERSK HAKONE
|
IDNo / IMO
|
9398084
|
Year
|
2010
|
Name
|
MAERSK HAKONE
|
Flag
|
SGP
|
Owner
|
Drake Energy Pte Ltd.
|
Type
|
Tanker
|
Tons
|
159806
|
DWT
|
302624
|
LOA
|
333,00
|
LPP
|
320,00
|
Beam
|
60,00
|
Dept
|
29,40
|
Draft
|
21,03
|
Machinery
|
1D-15.5
|
kW
|
29340
|
ShipDesign
|
VLCC
|
Builder
|
Universal Shipbuilding Corp., Kawasaki
|
Yard
|
Ariake
|
Yard No
|
96
|
Country built
|
JPN
|
Keel
|
16.06.2010
|
Launch
|
13.09.2010
|
Completed
|
16.11.2010
|
Subsequent History
|
2014 HAKONE - Euronav NV
|
End
|
----
|
Disposal Data
|
----
|
Ship Info :
IMO number :
|
9398084
|
|
Name of ship :
|
HAKONE
|
(since 01/12/2014)
|
Ex Name :
|
MAERSK HAKONE
|
(till 01/12/2014)
|
Call Sign :
|
SVCC5
|
|
MMSI :
|
241361000
|
|
Gross tonnage :
|
159806
|
(since 01/11/2010)
|
DWT :
|
302624
|
|
Type of ship :
|
Crude Oil Tanker
|
(since 01/11/2010)
|
Year of build :
|
2010
|
|
Flag :
|
Greece
|
(since 01/12/2014)
|
Status of ship :
|
In Service/Commission
|
(since 16/11/2010)
|
Last update :
|
30/06/2015
|
|
Class NK
|
Last update : 14 Jun 2015
|
Classification No. :
|
105174
|
IMO No. :
|
9398084
|
Official No. :
|
395596
|
Signal Letters :
|
9V8312
|
Flag :
|
Singapore
|
Port of Registry :
|
Singapore
|
Ship's Name :
|
MAERSK HAKONE
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
DRAKE ENERGY PTE LTD
|
Management Company 1 :
|
MAERSK TANKERS TECHNICAL OPERATIONS
|
Classification Characters, Notations :
|
NS*(TOB)(ESP)(PSCM) MNS*
|
Descriptive Notes :
|
--
|
Installation Characters :
|
CHG, MPP, LSA, RCF, M0, AFS
|
Installation Descriptive Notes
|
|
Automatic and Remote Control Systems :
|
The ship has complied with the requirements of Chapter II - 1, Part E of SOLAS, Periodically unattended machinery spaces (UMS).
|
Special Description :
|
--
|
Other Classification :
|
--
|
Type of Ship -Purpose(intended service) :
|
OIL CARRIER
|
- Certificates - SC/SE/SF :
|
--
|
- OPP :
|
--
|
- EE :
|
--
|
- SMC/ISSC :
|
--
|
Tonnage Gross (Registered) :
|
159,806
|
Tonnage Net (Registered) :
|
99,190
|
Tonnage Gross (Local) :
|
--
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
159,806
|
Tonnage Net (TM69) :
|
99,190
|
Deadweight :
|
302,624
|
Summer Freeboard (mm) :
|
8,420
|
Summer Draught (m) :
|
21.025
|
Lf (m) :
|
323.530
|
Continuous Max. Speed (kt) (Sea Trial) :
|
17.4
|
Equipment No. :
|
6,877
|
Overall Length (m) :
|
333.000
|
Moulded LxBxD (m) :
|
320.000 x 60.000 x 29.400
|
Registered LxBxD (m) :
|
323.530 x 60.000 x 29.400
|
Cargo Capacity (m3 / No. of Containers, etc.) :
|
L 350,263.00
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 7,534.00 FW 568.00 WB 106,904.00
|
Lifeboats Type, No. & Person :
|
1 2x(30)
|
Rescue Boats Type, No. & Person :
|
1 1x(6) (at combined use for lifeboat)
|
Liferafts Type, No. & Person :
|
1 1x(6) 1 4x(15)
|
Radio Installations :
|
GMDSS A1+A2+A3, SSAS
|
Navigation Equipment :
|
MC, GYRO, HCS, GPS, RDX, RDS, ARPA, AIS, VDR, LOG, LOG(G), ES, ROT, STGTEL, DSL, LRIT, BNWAS
|
No. & Kind of Engines :
|
1D : 2 SA 6 CY
|
Bore x Stroke (mm) :
|
900.0 x 3,188.0
|
Power (kW) :
|
29,340
|
Revolution (rpm) :
|
76.0
|
Manufacturer :
|
HITACHI ZOSEN CORPORATION ARIAKE WORKS
|
No. & Kind of Boilers :
|
1 AUX WTB
|
Pressure (MPa) :
|
2.16
|
Evaporation :
|
72.91 (ton/h)
|
Manufacturer :
|
MARUKIN SATO SHIPBUILDING & IRON PRODUCTS CO., LTD.
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 4,113
|
Kind of Propeller Shaft :
|
1C
|
No. & Shaft Diameter (mm) :
|
1 x 850
|
Shipbuilder :
|
Universal Shipbuilding Corporation, Ariake Shipyard
|
Hull No. :
|
096
|
Date of Keel Lay :
|
16 Jun 2010
|
Date of Launch :
|
13 Sep 2010
|
Date of Build :
|
16 Nov 2010
|
Date of Conversion :
|
--
|
