Astro Lupus
See also : Navix Seibo & Anangel Zhongte

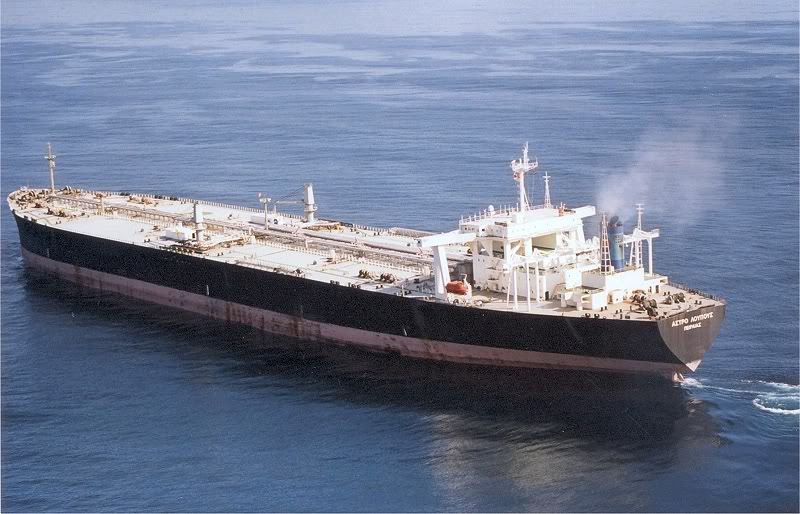

"Astro Lupus".
( Photo by Kevin Moore )

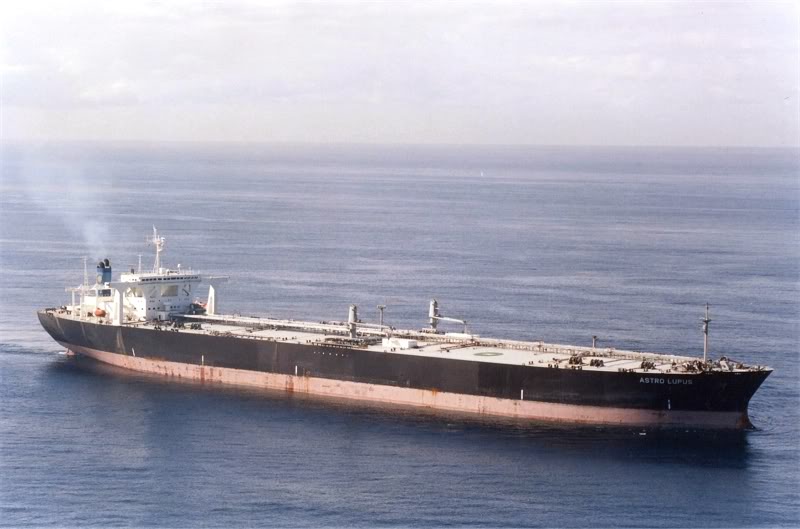

"Astro Lupus".
( Photo by Kevin Moore )

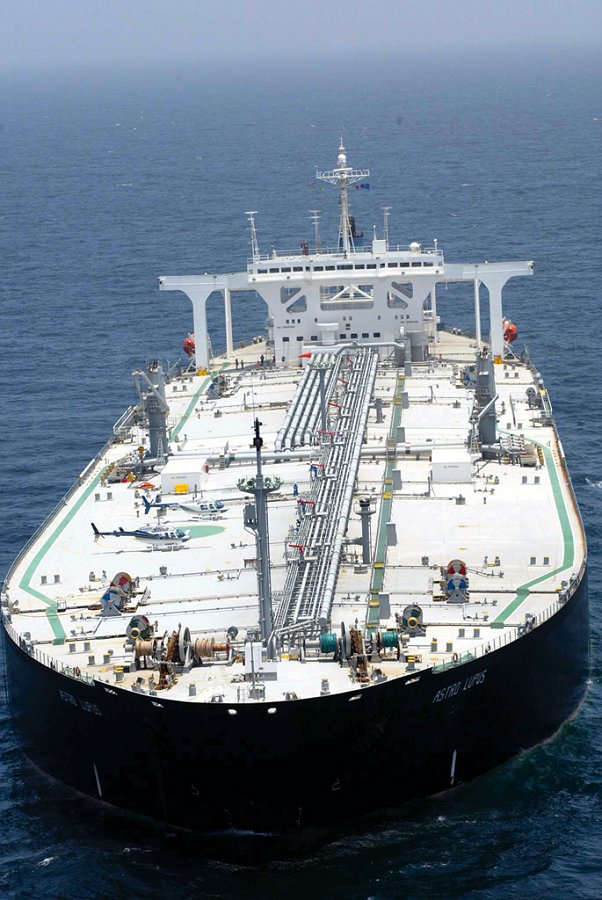

"Astro Lupus" at Singapore, September 20th, 2004.( Copyright John Regan )

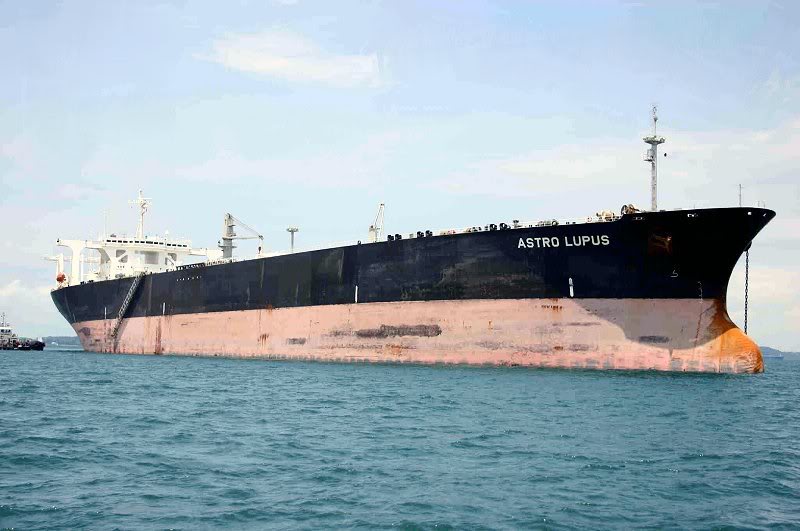

"Astro Lupus" at Singapore, September 20th, 2004.
( Copyright John Regan )

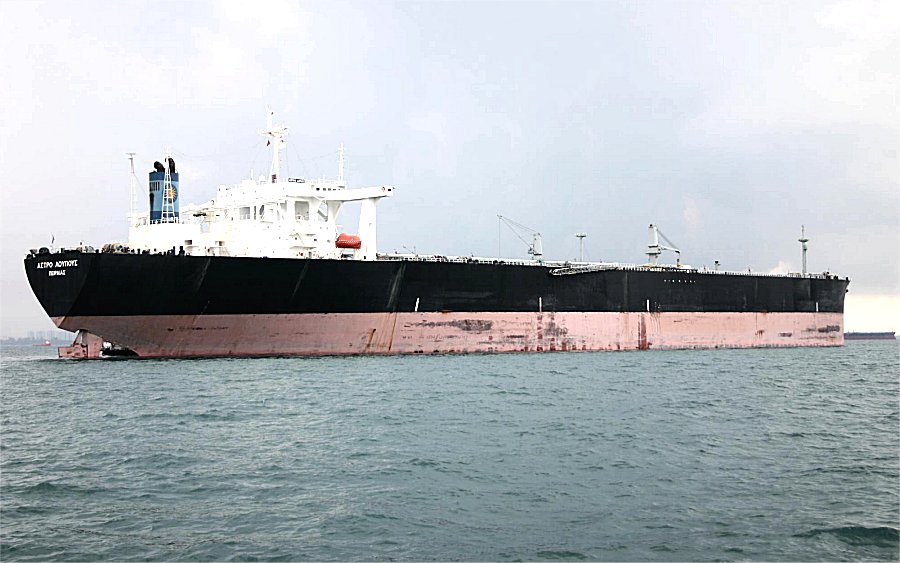

"Astro Lupus" at Singapore, September 20th, 2004.
( Copyright John Regan )

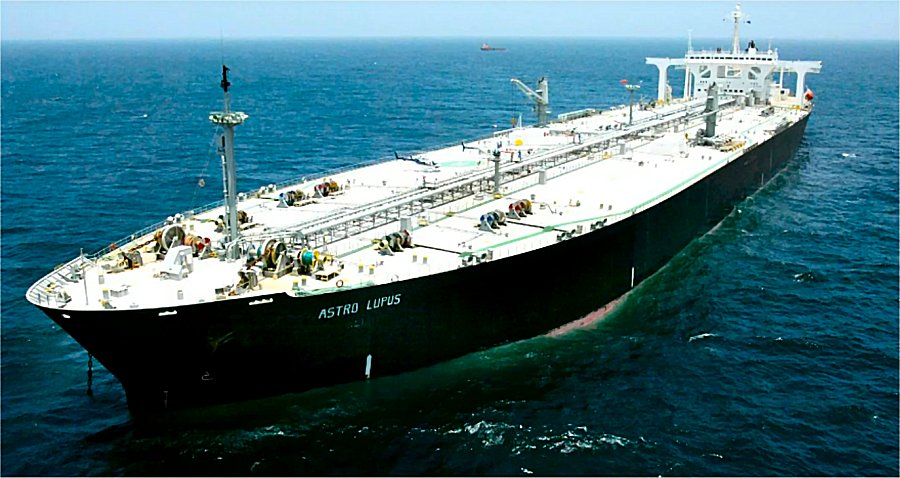

"Astro Lupus".
( Copyright reserved )
"Astro Lupus".( Copyright reserved )
The Miramar Ship Index for
|
NAVIX SEIBU
|
IDNo / IMO
|
8812667
|
Year
|
1989
|
Name
|
NAVIX SEIBU
|
Flag
|
JPN
|
Owner
|
Jade Line & Co., Ltd.
|
Type
|
Tanker
|
Tons
|
137893
|
DWT
|
238500
|
LOA
|
321,30
|
LPP
|
308,00
|
Beam
|
57,00
|
Dept
|
29,90
|
Draft
|
20,83
|
Machinery
|
1D-15.5
|
kW
|
18152
|
ShipDesign
|
VLCC
|
Builder
|
Mitsubishi Heavy Ind., Ltd.
|
Yard
|
Nagasaki
|
Yard No
|
2024
|
Country built
|
JPN
|
Keel
|
08.03.1989
|
Launch
|
19.08.1989
|
Completed
|
30.11.1989
|
Subsequent History
|
2000 ASTRO LUPUS - Westwind Nav., Inc.
2009 Converted to Ore-Carrier 138648 grt.
2009 ANANGEL ZHONGTE - Lupus I Special Maritime Enterprise
|
End
|
----
|
Disposal Data
|
----
|
ASTRO LUPUS
|
IMO NUMBER
|
8812667
|
VESSEL TYPE
|
CRUDE OIL TANKER
|
HULL TYPE
|
SINGLE HULL
|
GROSS TONNAGE
|
137.893 tons
|
SUMMER DWT
|
257.589 tons
|
BUILD
|
1989
|
BUILDER
|
MITSUBISHI HEAVY INDUSTRIES KOBE - JAPAN
|
FLAG
|
GREECE
|
MANAGER/OWNER
|
KRISTEN NAVIGATION ATHENS - GREECE
|
INSURER
|
GARD P&I CLUB NORWAY
|
VESSEL DETAILS
|
||
CLASSIFICATION
|
NS*(TOB)(ESP)-MNS*(MO.C)
|
|
|
LAST DRY DOCK
|
2007 Jun 19
|
|
LAST SPECIAL SURVEY
|
2007 Sep 18
|
GENERIC
|
SPEED
|
15,5 knots
|
DIMENSIONS
|
BOW TO BRIDGE
|
260,90 m
|
|
BREADTH EXTREME
|
57,00 m
|
|
BREADTH MOULDED
|
57,00 m
|
|
DEPTH
|
29,90 m
|
|
DRAUGHT
|
20,83 m
|
|
FREEBOARD
|
9.120,0 mm
|
|
KEEL TO MASTHEAD
|
65,18 m
|
|
LENGTH B/W PERPENDICULARS
|
308,00 m
|
|
LENGTH OVERALL
|
321,30 m
|
TONNAGES
|
NET TONNAGE
|
76.471 tons
|
LOADLINE
|
DEADWEIGHT (MAXIMUM ASSIGNED)
|
257.589 tons
|
|
DEADWEIGHT (NORMAL BALLAST)
|
95.612 tons
|
|
DEADWEIGHT (SEGREGATED BALLAST)
|
110.203 tons
|
|
DEADWEIGHT (TROPICAL)
|
264.176 tons
|
|
DEADWEIGHT (WINTER)
|
251.028 tons
|
|
DISPLACEMENT (LIGHTSHIP)
|
30.633 tons
|
|
DISPLACEMENT (NORMAL BALLAST)
|
126.245 tons
|
|
DISPLACEMENT (SEGREGATED BALLAST)
|
140.836 tons
|
|
DISPLACEMENT (SUMMER)
|
288.222 tons
|
|
DISPLACEMENT (TROPICAL)
|
294.809 tons
|
|
DISPLACEMENT (WINTER)
|
281.661 tons
|
|
DRAFT (LIGHTSHIP)
|
2,51 m
|
|
DRAFT (NORMAL BALLAST)
|
9,82 m
|
|
DRAFT (SEGREGATED BALLAST)
|
10,81 m
|
|
DRAFT (SUMMER)
|
20,83 m
|
|
DRAFT (TROPICAL)
|
21,26 m
|
|
DRAFT (WINTER)
|
20,39 m
|
|
DRAUGHT AFT (NORMAL BALLAST)
|
12,03 m
|
|
DRAUGHT FORE (NORMAL BALLAST)
|
7,60 m
|
|
FREEBOARD (LIGHTSHIP)
|
27.436,0 mm
|
|
FREEBOARD (NORMAL BALLAST)
|
20.126,0 mm
|
|
FREEBOARD (SEGREGATED BALLAST)
|
19.136,0 mm
|
|
FREEBOARD (SUMMER)
|
9.119,0 mm
|
|
FREEBOARD (TROPICAL)
|
8.686,0 mm
|
|
FREEBOARD (WINTER)
|
9.552,0 mm
|
|
FWA (SUMMER DRAFT)
|
474,0 mm
|
|
TPC IMMERSION (SUMMER DRAFT)
|
151,90 tons
|
CAPACITIES
|
BALLAST
|
106.226 m3
|
|
BUNKER
|
4.814 tons
|
COMMUNICATION
|
CALL SIGN
|
SYJM
|
HISTORICAL INFO
|
DATE OF ORDER
|
1988 Jul 01
|
|
KEEL LAID
|
1989 Mar 08
|
|
LAUNCH DATE
|
1989 Aug 19
|
|
YARD NUMBER
|
2.024
|
HISTORICAL INFO
|
||
FORMER NAMES
|
since 2001 Jan 14 NAVIX SEIBU
|
|
FORMER FLAGS
|
since 2001 Jan 14 PANAMA
|
|
|
since 2000 Aug 14 JAPAN
|
|
HISTORY
|
since 2009 ANANGEL ZHONGTE
|
ORE CARRIER
|
