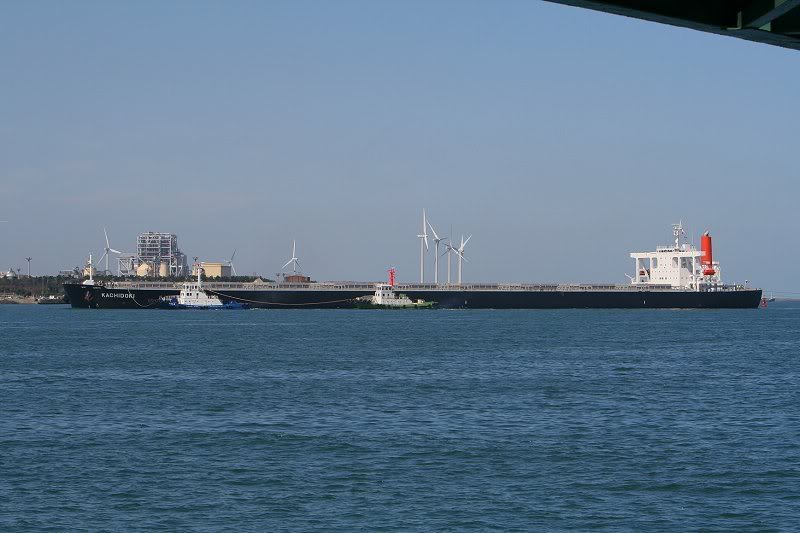

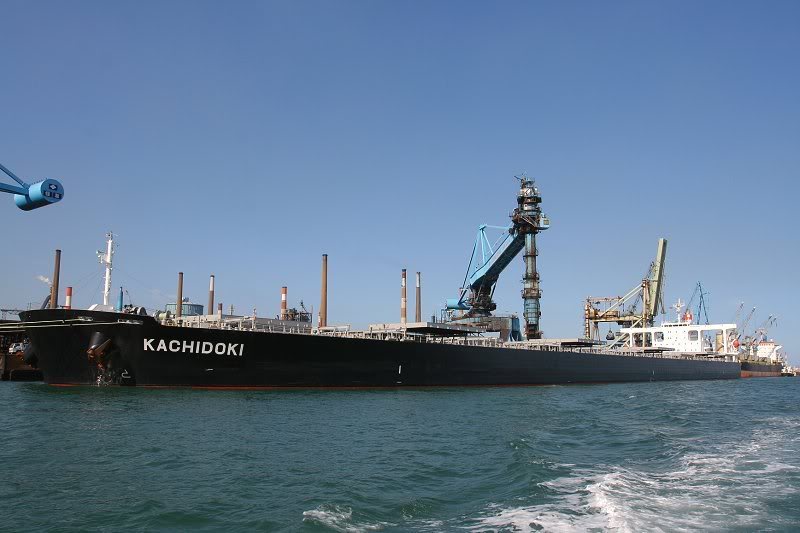

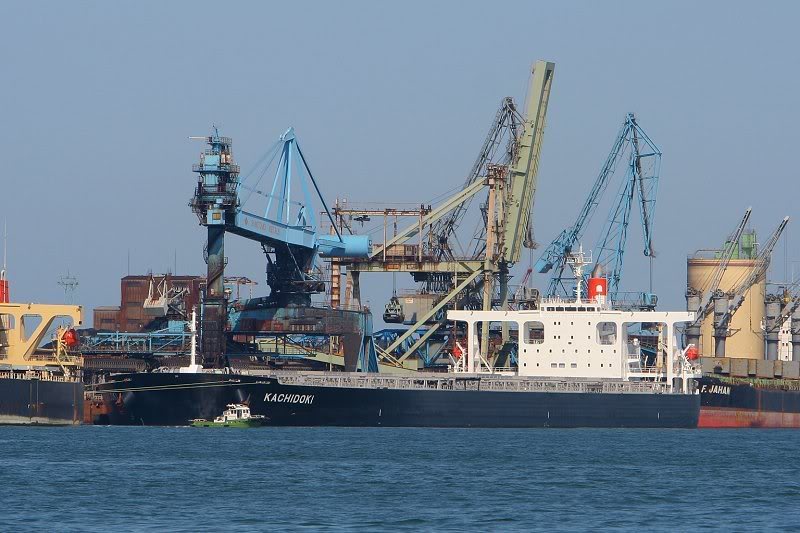

Kachidoki
"Kachidoki".
( Copyright reserved )
"Kachidoki".
( Copyright reserved )
"Kachidoki".
( Copyright reserved )
Not all details are available !
ClassNK Register of Ships
|
Last update : 11 May 2007
|
Classifiction No.
|
62715
|
IMO No.
|
9355147
|
Ship's Name
|
KACHIDOKI
|
Former Names
|
-----
|
Registered Owners
|
G.O.D. SHIPPING S.A.
|
Managing Company
|
DOUN KISEN CO., LTD.
|
Flag
|
PANAMANIAN
|
Port of Registry
|
PANAMA
|
Official No.
|
34504-TJ
|
Signal Letters
|
3EFH
|
Classification Characters
|
NS* ( BC, SHC 2,4,6,8 E ) ( ESP ) / MNS*
|
Descriptive Notes
|
-----
|
Installations Characters
|
CHG, MPP, LSA, RCF, M0
|
Special Description
|
IWS
|
Other Classification
|
-----
|
Last Special Survey
|
-----
|
SMC
|
Issued by ClassNK
|
ISPS
|
|
Tonnage Gross
|
-----
|
Tonnage Net
|
-----
|
Tonnage Gross (TM69)
|
104,728
|
Tonnage Net (TM69)
|
66,443
|
Tonnage Gross (SOLAS)
|
-----
|
Deadweight
|
206,291
|
Freeboard Summer (mm)
|
6,447
|
Draught (m)
|
18.105
|
Trial Speed (kt)
|
-----
|
Sea Speed (kt)
|
-----
|
Type of Ship and Purpose
|
M BULK CARRIER
|
Position of Machinery Room
|
-----
|
No. of Decks
|
-----
|
Framing
|
-----
|
Equipment No.
|
5,418
|
Overall Length (m)
|
299.940
|
Registered L x B x D (m)
|
292.170 x 50.000 x 24.500
|
Moulded L x B x D (m)
|
291.400 x 50.000 x 24.500
|
Length of Deck Erections (m)
|
-----
|
Cargo Capacity (m3)
|
G 220,022
|
(Bale, Grain, Liquid, Refrigerated Space, Vehicles, TEU)
|
|
No. & ( L x B ) (m) of Hatchways
|
-----
|
No. x SWL ( ton ) of Derricks orCranes
|
|
No. of Passengers
|
-----
|
No. of Bulkheads
|
0 WT
|
Capacity of Tanks (m3)
|
FO 6,105 FW 722 WB 76,115
|
Lifeboats - Type, No. & Person
|
3 1x(24) 3 1x(24)
|
Rescue Boats - No. & Person
|
1x(6)
|
Liferafts - Type, No. & Person
|
I 2x(25) 1x(6)
|
Radio Installations
|
TRCV, GMDSS A1+A2+A3, S-ALEART
|
Navigation Equipment
|
Mc Gc Ap Gps Rdr 2Rd Arpa Ais Vdr Spd Spdg Ds Rot
|
No. & Kind of Engines
|
1D : 2 SA 6 CY
|
Bore x Stroke (mm)
|
700x2,8001
|
Power(kW)
|
8630
|
rpm
|
1
|
Manufacturer
|
MITSUI ENGINEERING & SHIPBUILDING CO., LTD.
|
No. & Kind of Boilers
|
1 AUX VB
|
Pressure(MPa)
|
0.78
|
Manufacturer
|
MIURA PROTEC CO., LTD.
|
No. & Capacity of Generators
|
4 AC 2,400
|
Kind of Propeller Shaft
|
1C
|
Shipbuilder
|
Imabari Shipbuilding Co., Ltd., Saijo Shipyard
|
Hull No.
|
8027
|
Date of Build
|
6-2006
|
Date of Launch
|
4-2006
|
Date of Conversion
|
-----
|
