BULK- & ORE Carriers . 175.000 DWT Part D - M | home
Luise Oldendorff
Seea also : More photos "Luise Oldendorff"

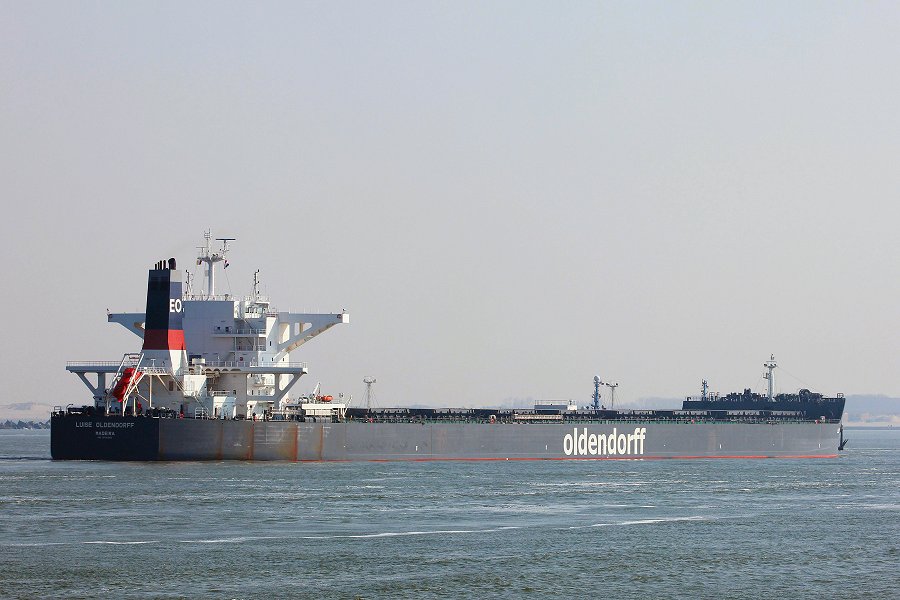

"Luise Oldendorff", May 30th, 2016.
( Photo Copyright Magne Dalmo )

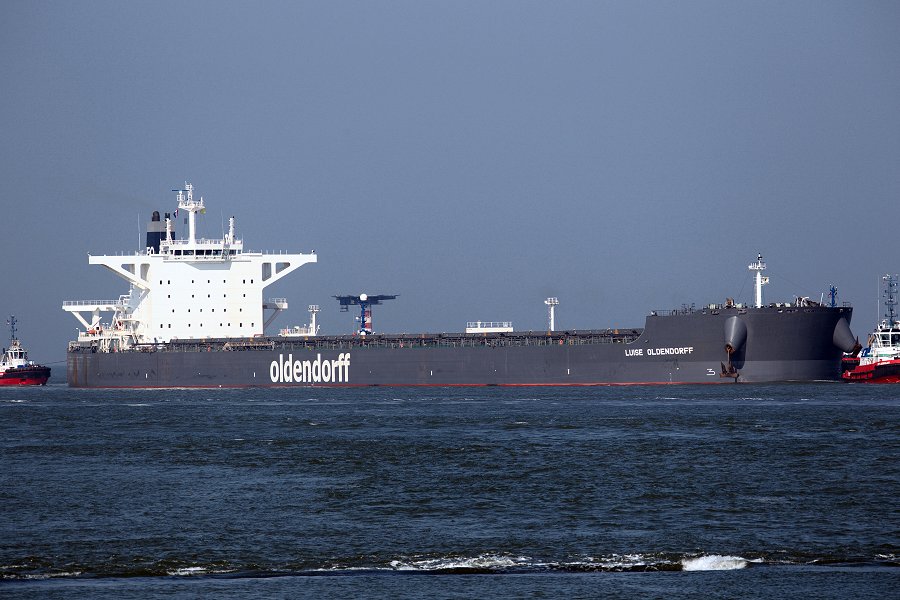

"Luise Oldendorff", at Europoort, Rotterdam, March 22nd, 2016
( Photo Copyright Gerolf Drebes )

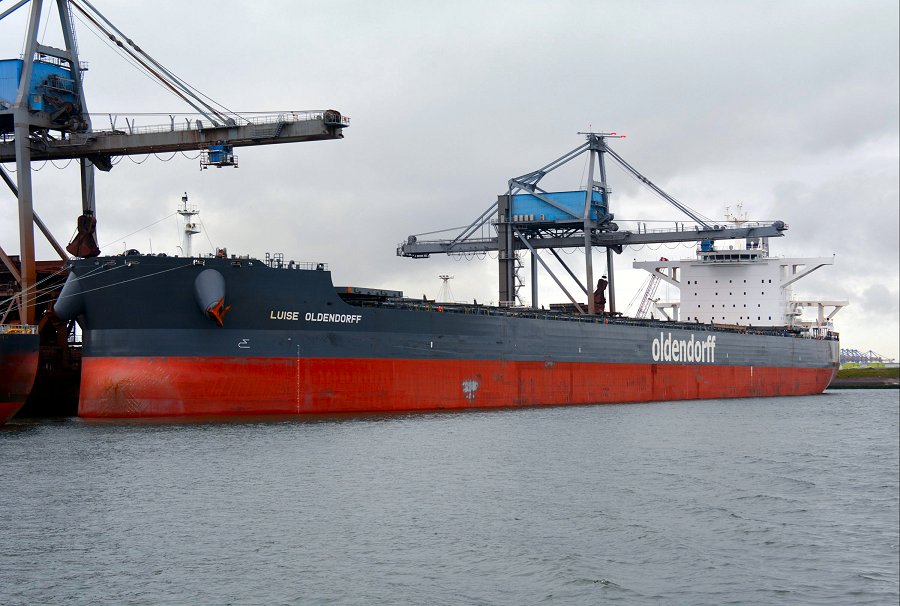

"Luise Oldendorff", at Europoort, Rotterdam, March 22nd, 2016
( Photo Copyright Frans Sanderse )

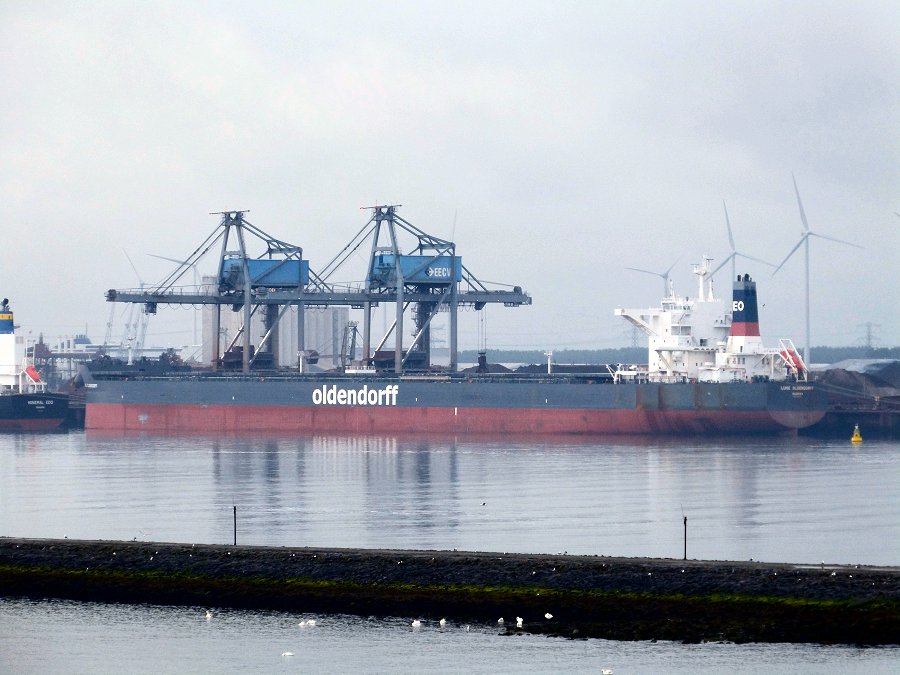

"Luise Oldendorff", arriving at Europoort, Rotterdam, March 17th, 2016
( Photo Copyright Pieter Melissen )

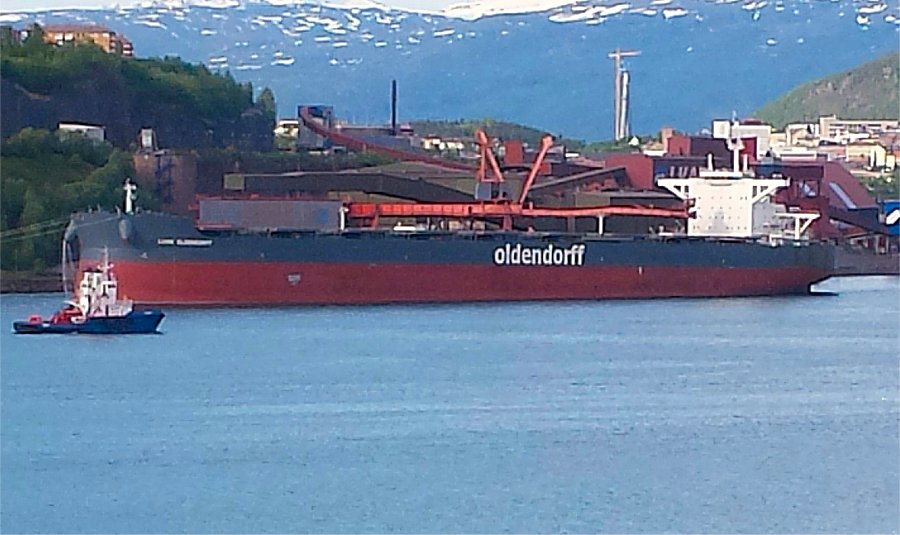

"Luise Oldendorff", arriving at Europoort, Rotterdam, March 17th, 2016
( Photo Copyright Hannes van Rijn )
Ship Info :
IMO number :
|
9714240
|
|
Name of ship :
|
LUISE OLDENDORFF
|
(since 01/05/2015)
|
Call Sign :
|
CQEI
|
|
MMSI :
|
255805685
|
|
Gross tonnage :
|
107413
|
(since 01/05/2015)
|
DWT :
|
207562
|
|
Type of ship :
|
Bulk Carrier
|
(since 01/05/2015)
|
Year of build :
|
2015
|
|
Flag :
|
Portugal (MAR)
|
(since 01/05/2015)
|
Status of ship :
|
In Service/Commission
|
(since 26/05/2015)
|
Last update :
|
04/10/2016
|
|
The Miramar Ship Index for
|
LUISE OLDENDORFF
|
ID/ IMO
|
9714240
|
Year
|
2015
|
Name
|
LUISE OLDENDORFF
|
Flag
|
PRT
|
Owner
|
Oldendorff Carriers GmbH & Co.
|
Type
|
Bulk Carrier
|
Tons
|
107413
|
DWT
|
207562
|
LOA
|
299.97
|
LPP
|
291.5
|
Beam
|
50.0
|
Dept
|
25.0
|
Draft
|
18.47
|
Mchy
|
1D-15.0
|
kW
|
16200
|
Design
|
Bulk Carrier
|
Builder
|
Hyundai HI Gunsan Shipyard
|
Yard
|
Kunsan
|
Yard No
|
2676
|
Built in
|
KOR
|
Keel
|
27.11.2013
|
Launch
|
06.03.2015
|
Compl.
|
26.05.2015
|
History
|
None
|
End
|
----
|
Disposal Data
|
----
|
Class NK Register of Ships
|
Last update : 8 Sep 2016
|
Classification No. :
|
152117
|
IMO No. :
|
9714240
|
Official No. :
|
Temp281M
|
Signal Letters :
|
CQEI
|
Flag :
|
Portugal
|
Port of Registry :
|
Madeira
|
Ship's Name :
|
LUISE OLDENDORFF
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
Oldendorff Carriers GmbH & Co. KG
|
Management Company 1 :
|
Oldendorff Carriers GmbH & Co. KG
|
Classification Characters, Notations :
|
NS*(CSR, BC-A, BC-XII, GRAB 20, PSPC-WBT)(ESP)(IWS)(PSCM)(EEDI-p1) MNS*(M0)
|
Descriptive Notes
|
|
Design Condition :
|
Strengthened for heavy cargo loading where hold nos. 2,4,6 & 8 may be empty
|
Installation Characters :
|
MPP, LSA, RCF, M0, AFS
|
Installation Descriptive Notes
|
|
Automatic and Remote Control Systems :
|
The ship has complied with the requirements of Chapter II-1, Part E of SOLAS, "Periodically unattended machinery spaces (UMS)".
|
Special Description :
|
--
|
Other Classification :
|
--
|
Type of Ship -Purpose(intended service) :
|
BULK CARRIER
|
- Certificates - SC/SE/SF :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
- OPP :
|
Other than Oil Tanker
|
- EE :
|
Bulk carrier
|
- SMC/ISSC :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
Tonnage Gross (Registered) :
|
107,413
|
Tonnage Net (Registered) :
|
67,428
|
Tonnage Gross (Local) :
|
--
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
107,413
|
Tonnage Net (TM69) :
|
67,428
|
Deadweight :
|
207,562
|
Summer Freeboard (mm) :
|
6,590
|
Summer Draught (m) :
|
18.473
|
Lf (m) :
|
291.530
|
Continuous Max. Speed (kt) (Sea Trial) :
|
16.5
|
Equipment No. :
|
6,821
|
Overall Length (m) :
|
299.970
|
Moulded LxBxD (m) :
|
291.500 x 50.000 x 25.000
|
Registered LxBxD (m) :
|
291.530 x 50.000 x 25.000
|
Cargo Capacity (m3 / No. of Containers, etc.) :
|
G 223,304.00
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 6,300.00 FW 499.00
|
Lifeboats Type, No. & Person :
|
8 1x(30)
|
Rescue Boats Type, No. & Person :
|
1 1x(6)
|
Liferafts Type, No. & Person :
|
1 1x(6) 1 2x(16) 2 2x(16)
|
Radio Installations :
|
GMDSS A1+A2+A3, INMARSAT
|
Navigation Equipment :
|
MC, GYRO, HCS, ECDIS, GPS, RDX, RDS, ARPA, AIS, VDR, LOG, LOG(G), ES, ROT, STGTEL, DSL, LRIT, BNWAS
|
No. & Kind of Engines :
|
1D : 2 SA 6 CY
|
Bore x Stroke (mm) :
|
700.0 x 3,256.0
|
Power (kW) :
|
16,200
|
Revolution (rpm) :
|
73.0
|
Manufacturer :
|
HYUNDAI HEAVY INDUSTRIES CO., LTD.
|
No. & Kind of Boilers :
|
1 AUX VB
|
Pressure (MPa) :
|
0.80
|
Evaporation :
|
2.00 (ton/h)
|
Manufacturer :
|
Alfa Laval Qingdao Ltd
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 3,550
|
Kind of Propeller Shaft :
|
1B
|
No. & Shaft Diameter (mm) :
|
1 x 670
|
Shipbuilder :
|
HYUNDAI HEAVY INDUSTRIES, GUNSAN SHIPYARD
|
Hull No. :
|
2676
|
Date of Keel Lay :
|
27 Nov 2013
|
Date of Launch :
|
06 Mar 2015
|
Date of Build :
|
26 May 2015
|
Date of Conversion :
|
--
|
