BULK- & ORE Carriers . 175.000 DWT Part D - M | home
Mineral Kyoto

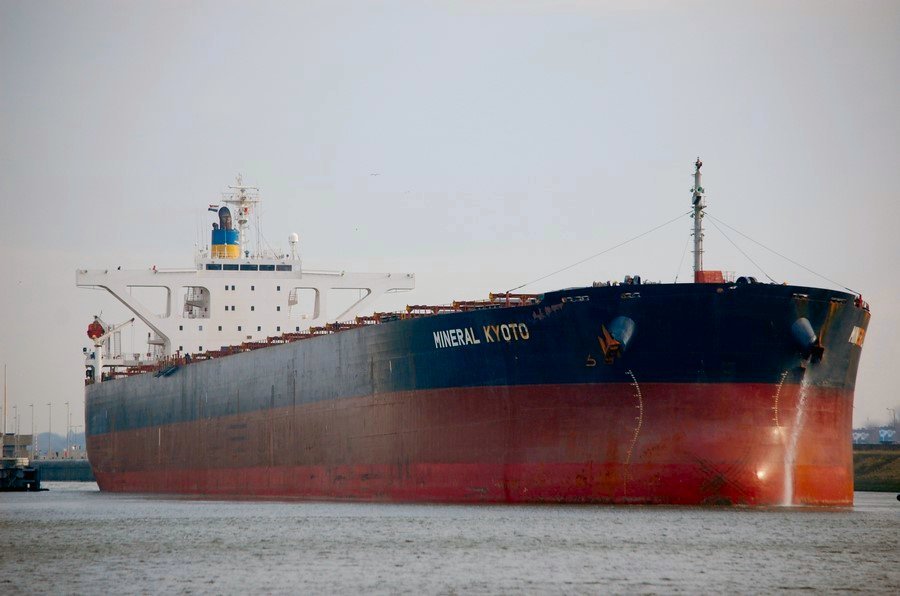

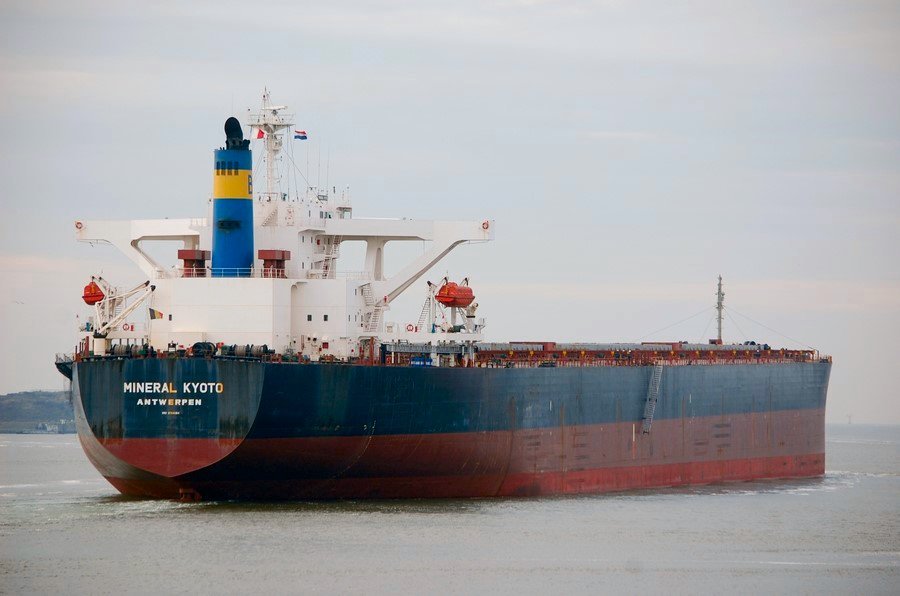

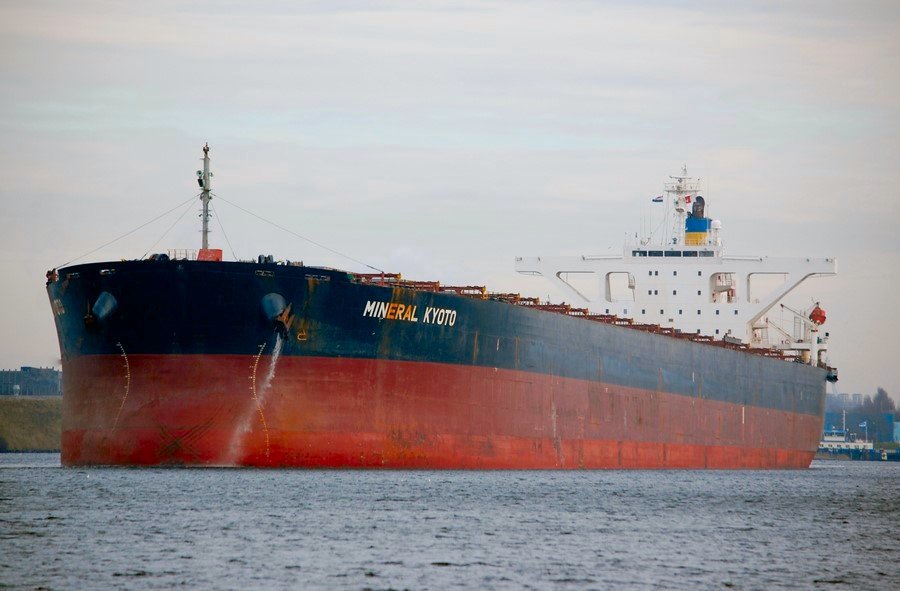

"Mineral Kyoto", leaving Europoort, Rotterdam, 2015.
( Photo Copyright Pieter Melissen )
"Mineral Kyoto", leaving Europoort, Rotterdam, 2015.
( Photo Copyright Pieter Melissen )
"Mineral Kyoto", leaving Europoort, Rotterdam, 2015.
( Photo Copyright Pieter Melissen )

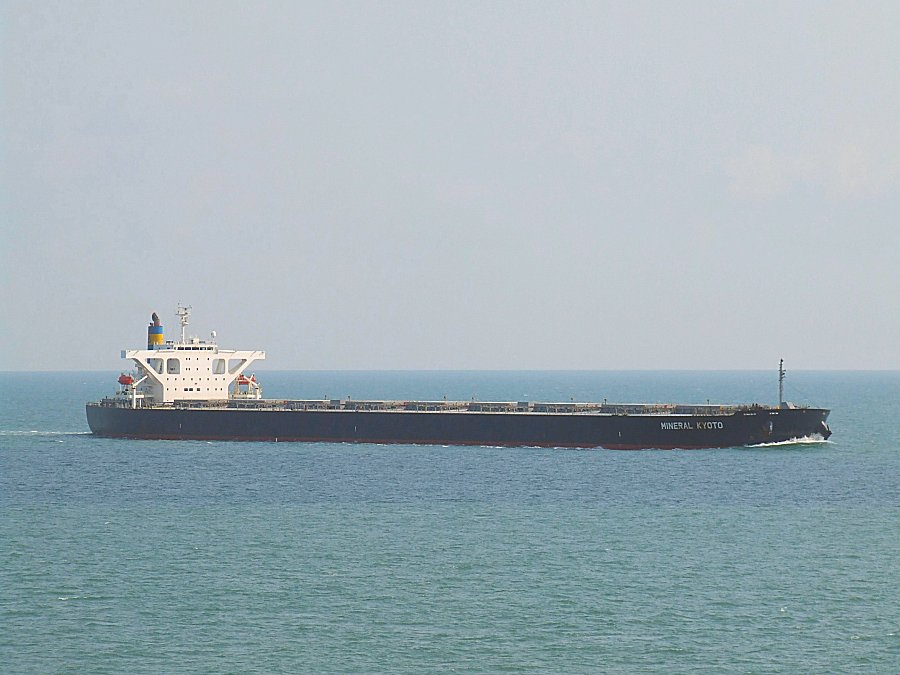

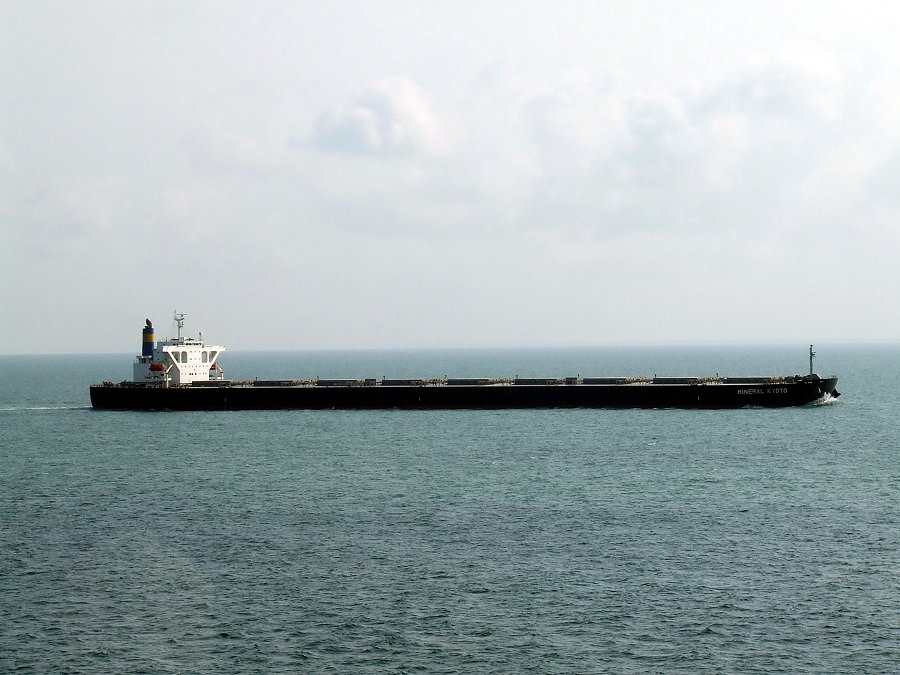

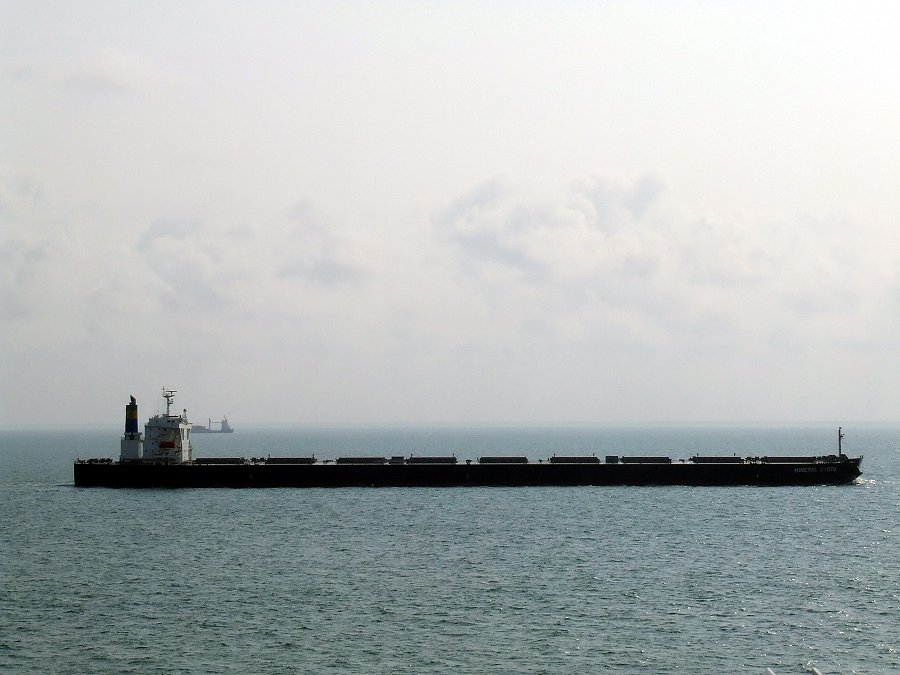

"Mineral Kyoto", eastbound in Malacca Strait, August 3rd, 2008.
( Photo Copyright Knut Helge Schistad )
"Mineral Kyoto", eastbound in Malacca Strait, August 3rd, 2008.
( Photo Copyright Knut Helge Schistad )
"Mineral Kyoto", eastbound in Malacca Strait, August 3rd, 2008.
( Photo Copyright Knut Helge Schistad )
Ship Info :
IMO number :
|
9314064
|
|
Name of ship :
|
MINERAL KYOTO
|
(since 01/09/2004)
|
Call Sign :
|
ONFI
|
|
MMSI :
|
205519000
|
|
Gross tonnage :
|
90398
|
(during 2004)
|
DWT :
|
180310
|
|
Type of ship :
|
Bulk Carrier
|
(during 2004)
|
Year of build :
|
2004
|
|
Flag :
|
Belgium
|
(since 01/04/2008)
|
Status of ship :
|
In Service/Commission
|
(since 10/09/2004)
|
Last update :
|
12/01/2016
|
|
Info : Bureau Veritas
Identification
|
|
Register Number:
|
04484B
|
IMO Number:
|
9314064
|
Ship Name:
|
MINERAL KYOTO
|
Call Sign:
|
ONFI
|
Type & service:
|
Bulk carrier
|
Owner:
|
CMB N.V. S.A.
|
Connecting District:
|
LUXEMBOURG (LXB)
|
Flag:
|
BELGIUM
|
Port of Registry:
|
ANTWERPEN
|
Classification
|
|
||
Main Class Symbols:
|
I Hull Mach
|
||
Service Notations:
|
Bulk carrier ESP -heavycargo -nonhomload Holds 2-4-6-8 may be empty
|
||
Navigation Notations:
|
Unrestricted navigation
|
||
Additional Class Notation(s):
|
AUT-UMS (SS) , MON-SHAFT , ERS-S , NWATERSURVEY
|
||
Machinery:
|
|
MACH
|
|
Equipment:
|
2(Ch 97 Q3)
|
||
Dimension
|
|
Gross Tonnage 69:
|
90398
|
Net Tonnage 69:
|
59281
|
Deadweight:
|
180310 ton
|
Overall Length:
|
288.93 m
|
LPP:
|
280.8 m
|
Breadth:
|
45 m
|
Depth:
|
24.7 m
|
Draught:
|
18.17 m
|
Freeboard:
|
6577 mm
|
Hull & Cargo
|
|
Builder:
|
IMABARI SHIPBUILDING CO., LTD. Hiroshima Shipyard
|
Place of build (Country):
|
(JPN)
|
Date of Build:
|
10 Sep 2004
|
Yard N°:
|
2197
|
Hull Material:
|
Steel
|
Nb of Watertight Comp.:
|
12
|
Number of Cont. Decks:
|
1 Machinery Aft
|
Holds
|
|
Number of Holds:
|
9
|
Total Capacity of Holds:
|
0.00
|
Tanks
|
|
Cargo Hatchways:
|
9
|
Dimension:
|
1(15,6X17,6) 8(15,6X20.8)
|
LBC:
|
312109
|
Machinery
|
|
Propelling Type:
|
Diesel
|
Licence:
|
M A N-B & W
|
Date of Build:
|
01 Jan 2004
|
Builder:
|
MITSUI ENGINEERING & SHIPBUILDING CO., LTD.
|
Place of Build (country):
|
Tamano (JPN)
|
Power and rating
|
|
Total Power (kW):
|
18630 kW
|
Total Power (HP):
|
25313 HP
|
Propelling machinery
|
|
Internal Combustion Engine:
|
(1) 2T - 6 cyl - 70.00 cm x 280.00 cm at 91 rpm
|
Boilers
|
|
Boiler:
|
1 CHM MIURA 284.10 m² / 8.00 bar
|
Electrical installation
|
|
Power Voltage:
|
440 V
|
Lighting Voltage:
|
220 V
|
Frequency:
|
60 Hz
|
Diesel Generators:
|
3 - 750 kVA - 600 kW - 897 HP
|
Emergency Generators:
|
1 - 150 kVA - 120 kW - 186 HP
|
Propellers and propellershafts
|
|
Propelling system:
|
1 Screw Propeller Solid LB 10.00 at 91 rpm
|
Speed of the ship
|
|
Speed:
|
16.5 kn
|
Capacity of bunkers
|
|
Fuel Capacity:
|
5669.97 m³
|
