BULK- & ORE Carriers . 175.000 DWT Part D - M | home
Mineral Edo

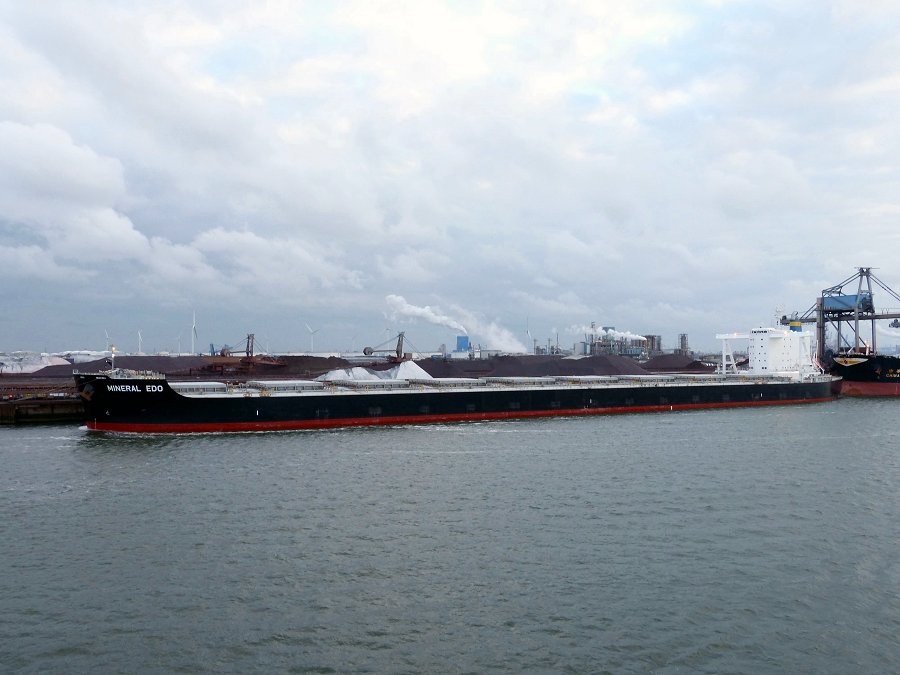

"Mineral Edo", at Europoort, Rotterdam, May 16th, 2016.
( Photo Copyright Pieter Melissen )

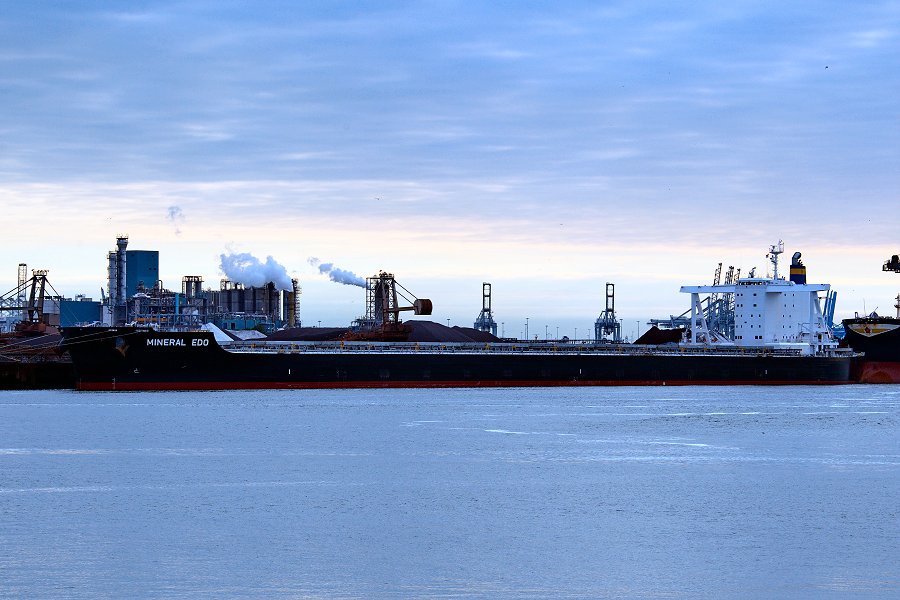

"Mineral Edo", at Europoort, Rotterdam, May 15th, 2016.
( Photo Copyright Frans Sanderse )
Ship Info :
IMO number :
|
9727352
|
|
Name of ship :
|
MINERAL EDO
|
(since 01/04/2015)
|
Call Sign :
|
3FIR3
|
|
MMSI :
|
373449000
|
|
Gross tonnage :
|
107514
|
(since 01/04/2015)
|
DWT :
|
207219
|
|
Type of ship :
|
Bulk Carrier
|
(since 01/04/2015)
|
Year of build :
|
2015
|
|
Flag :
|
Panama
|
(since 01/04/2015)
|
Status of ship :
|
In Service/Commission
|
(since 17/04/2015)
|
Last update :
|
28/06/2016
|
|
ClassNK Register of Ships
|
Last update : 23 Jun 2016
|
Classification No. :
|
152038
|
IMO No. :
|
9727352
|
Official No. :
|
46769-15
|
Signal Letters :
|
3FIR3
|
Flag :
|
Panama
|
Port of Registry :
|
Panama
|
Ship's Name :
|
MINERAL EDO
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
LUSTER MARITIME S.A.
|
2 :
|
HIGAKI SANGYO KAISHA, LTD.
|
Management Company 1 :
|
SHOEI KISEN KAISHA, LTD.
|
Classification Characters, Notations :
|
NS*(CSR, BC-A, BC-XII, GRAB 20, PSPC-WBT)(ESP)(PSCM)
MNS*(M0)
|
Descriptive Notes
|
|
Design Condition :
|
Strengthened for heavy cargo loading where hold nos. 2,4,6 & 8 may be empty
|
Installation Characters :
|
CHG, MPP, LSA, RCF, M0, AFS
|
Installation Descriptive Notes
|
|
Automatic and Remote Control Systems :
|
The ship has complied with the requirements of Chapter II - 1, Part E of SOLAS, Periodically unattended machinery spaces (UMS).
|
Special Description :
|
--
|
Other Classification :
|
--
|
Type of Ship -Purpose(intended service) :
|
BULK CARRIER
|
- Certificates - SC/SE/SF :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
- OPP :
|
Other than Oil Tanker
|
- EE :
|
Bulk carrier
|
- SMC/ISSC :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
Tonnage Gross (Registered) :
|
107,514
|
Tonnage Net (Registered) :
|
69,478
|
Tonnage Gross (Local) :
|
--
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
107,514
|
Tonnage Net (TM69) :
|
69,478
|
Deadweight :
|
207,219
|
Summer Freeboard (mm) :
|
6,482
|
Summer Draught (m) :
|
18.270
|
Lf (m) :
|
291.940
|
Continuous Max. Speed (kt) (Sea Trial) :
|
16.8
|
Equipment No. :
|
5,785
|
Overall Length (m) :
|
299.940
|
Moulded LxBxD (m) :
|
291.400 x 50.000 x 24.700
|
Registered LxBxD (m) :
|
291.940 x 50.000 x 24.700
|
Cargo Capacity (m3 / No. of Containers, etc.) :
|
G 229,345.00
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 6,243.00 FW 752.00 WB 67,727.00
|
Lifeboats Type, No. & Person :
|
8 1x(25)
|
Rescue Boats Type, No. & Person :
|
1 1x(6)
|
Liferafts Type, No. & Person :
|
1 1x(6) 1 1x(25) 2 1x(25)
|
Radio Installations :
|
GMDSS A1+A2+A3
|
Navigation Equipment :
|
MC, GYRO, HCS, ECDIS, GPS, RDX, RDS, ARPA, AIS, VDR, LOG, LOG(G), ES, ROT, STGTEL, DSL, LRIT, BNWAS
|
No. & Kind of Engines :
|
1D : 2 SA 6 CY
|
Bore x Stroke (mm) :
|
700.0 x 2,800.0
|
Power (kW) :
|
16,420
|
Revolution (rpm) :
|
77.0
|
Manufacturer :
|
HITACHI ZOSEN CORPORATION ARIAKE WORKS
|
No. & Kind of Boilers :
|
1 AUX VB
|
Pressure (MPa) :
|
0.80
|
Evaporation :
|
4.00 (ton/h)
|
Manufacturer :
|
MIURA Co., Ltd.
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 2,450
|
Kind of Propeller Shaft :
|
1C
|
No. & Shaft Diameter (mm) :
|
1 x 690
|
Shipbuilder :
|
IMABARI SHIPBUILDING CO., LTD., SAIJO SHIPYARD
|
Hull No. :
|
8158
|
Date of Keel Lay :
|
30 Jun 2014
|
Date of Launch :
|
04 Feb 2015
|
Date of Build :
|
17 Apr 2015
|
Date of Conversion :
|
--
|
