Frontier Jasmine

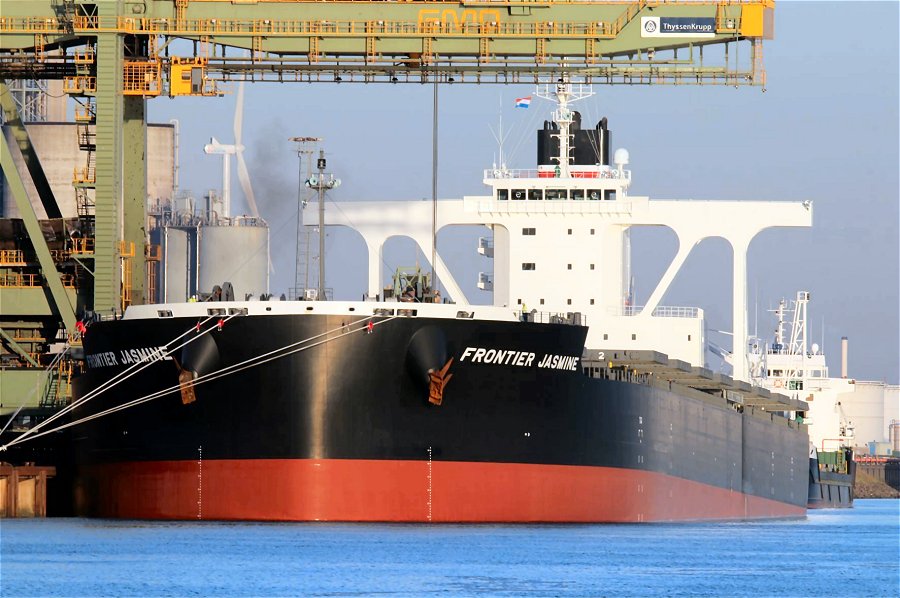

"Frontier Jasmine" at IJmuiden Netherlands, November 20th, 2023.( Photo Copyright Willem Oldenburg )

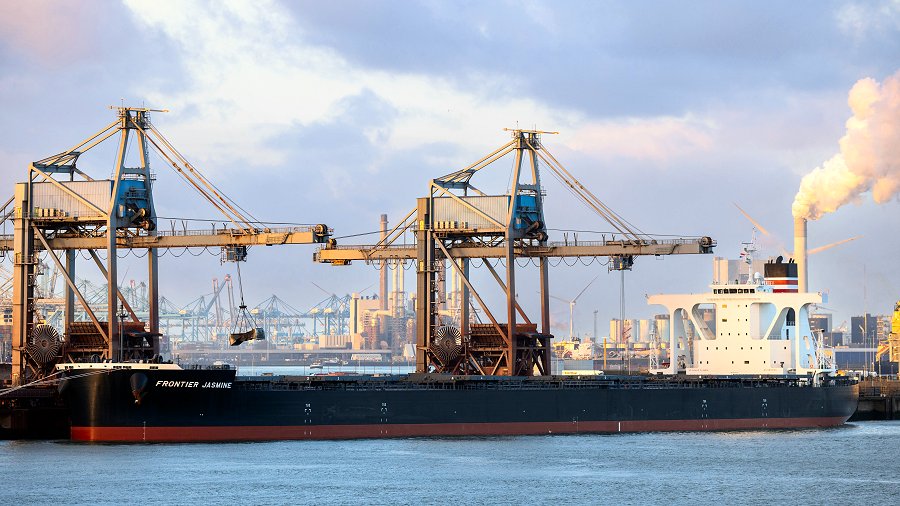

"Frontier Jasmine" at Europoort, Rotetrdam, December 27th, 2022.
( Photo Copyright Edwin van Werd )

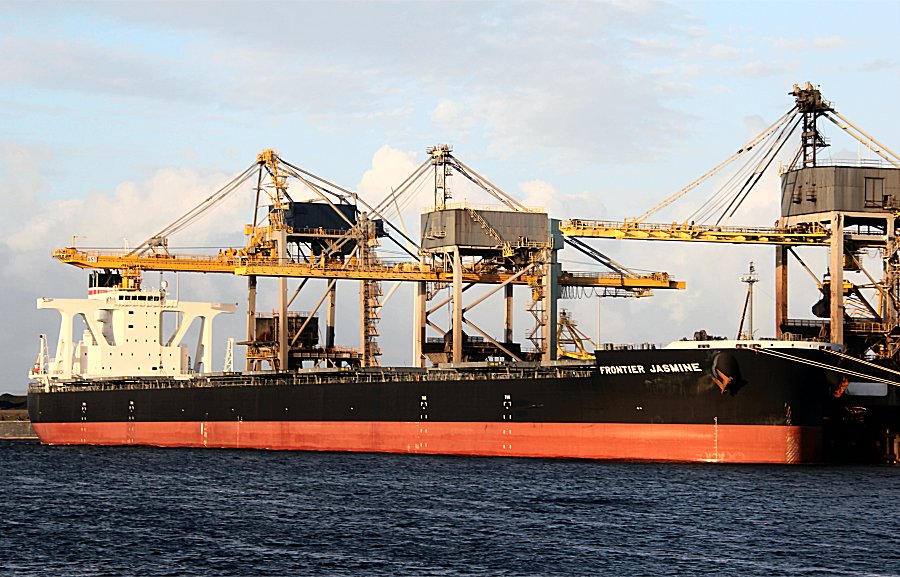

"Frontier Jasmine" at Europoort, Rotetrdam, November 12th, 2022.( Photo Copyright franssl )
Ship info :
FRONTIER JASMINE - IMO n° 9933418
Flag : (Marshall Islands)
Call Sign : V7A5499
MMSI : 538010035
Gross tonnage : 93718 (since 01/07/2022)
DWT : 182130
Type of ship : Bulk Carrier (since 01/07/2022)
Year of build : 2022
Status : In Service/Commission (since 26/07/2022)
Last update of ship particulars 31/01/2023
ClassNK Register of Ships
|
Last update : 27 Jul 2022
|
Classification No. :
|
222125
|
IMO No. :
|
9933418
|
Official No. :
|
10035
|
Signal Letters :
|
V7A5499
|
Flag :
|
Marshall Islands
|
Port of Registry :
|
Majuro
|
Ship's Name :
|
FRONTIER JASMINE
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
F.J. LINES INC.
|
Management Company 1 :
|
--
|
Classification Characters, Notations :
|
NS*(CSR, BC-A, BC-XII, GRAB 35, PSPC-WBT, NC, 1C)(ESP)(HCM-GBS)(PSCM)(IHM)(EEDI-p2)(NOx-III(SCR, EGR))
MNS*
|
Descriptive Notes
|
|
Design Condition :
|
Complied with Part CSR-B&T of the Rules for the Survey and Construction of Steel Ships / Strengthened for heavy cargo loading where hold nos. 2,4,6 & 8 may be empty
|
Other :
|
NOx-III(2021)(M/E : EGR), (G/E(Nos.1, 2, 3) : SCR)
|
Installation Characters :
|
CHG, MPP, LSA, RCF, M0, AFS, BWM
|
Installation Descriptive Notes
|
|
Automatic and Remote Control Systems :
|
The ship has complied with the requirements of Chapter II-1, Part E of SOLAS, "Periodically unattended machinery spaces (UMS)".
|
Special Description :
|
--
|
Other Classification :
|
--
|
Type of Ship -Purpose(intended service) :
|
BULK CARRIER
|
- Certificates - SC/SE/SF :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
- OPP :
|
Other than Oil Tanker
|
- EE :
|
Bulk carrier
|
- SMC/ISSC :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
Tonnage Gross (Registered) :
|
93,718
|
Tonnage Net (Registered) :
|
60,544
|
Tonnage Gross (Local) :
|
--
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
93,718
|
Tonnage Net (TM69) :
|
60,544
|
Deadweight :
|
182,13
|
Summer Freeboard (mm) :
|
6,436
|
Summer Draught (m) :
|
18225
|
Lf (m) :
|
287600
|
Continuous Max. Speed (kt)
(Sea Trial) :
|
--
|
Equipment No. :
|
5,117
|
Overall Length (m) :
|
291920
|
Moulded LxBxD (m) :
|
287.600 x 45.000 x 24.600
|
Registered LxBxD (m) :
|
287.600 x 45.000 x 24.600
|
Cargo Capacity (m3 / No. of Containers, etc.) :
|
G 199,521.30
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 4,724.90 FW 558.20
|
Lifeboats Type, No. & Person :
|
--
|
Rescue Boats Type, No. & Person :
|
--
|
Liferafts Type, No. & Person :
|
--
|
Radio Installations :
|
--
|
Navigation Equipment :
|
--
|
No. & Kind of Engines :
|
1DE : 2 SA 6 CY
|
Bore x Stroke (mm) :
|
700.0 x 3,256.0
|
Power (kW) :
|
14,37
|
Revolution (rpm) :
|
67.9
|
Manufacturer :
|
Mitsui E&S Machinery Co., Ltd. Tamano Machinery Factory
|
No. & Kind of Boilers :
|
1 AUX VB
|
Pressure (MPa) :
|
0.69
|
Evaporation :
|
4.44 (ton/h)
|
Manufacturer :
|
OSAKA BOILER MFG. CO., LTD.
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 3,014
|
Kind of Propeller Shaft :
|
1C
|
No. & Shaft Diameter (mm) :
|
1 x 700
|
Shipbuilder :
|
NAMURA SHIPBUILDING CO., LTD. IMARI SHIPYARD & WORKS
|
Hull No. :
|
478
|
Date of Keel Lay :
|
22 Oct 2021
|
Date of Launch :
|
22-04-22
|
Date of Build :
|
26-07-22
|
Date of Conversion :
|
--
|
