C. Vision
See also : Film - Tanker C. Vision, Oil Route

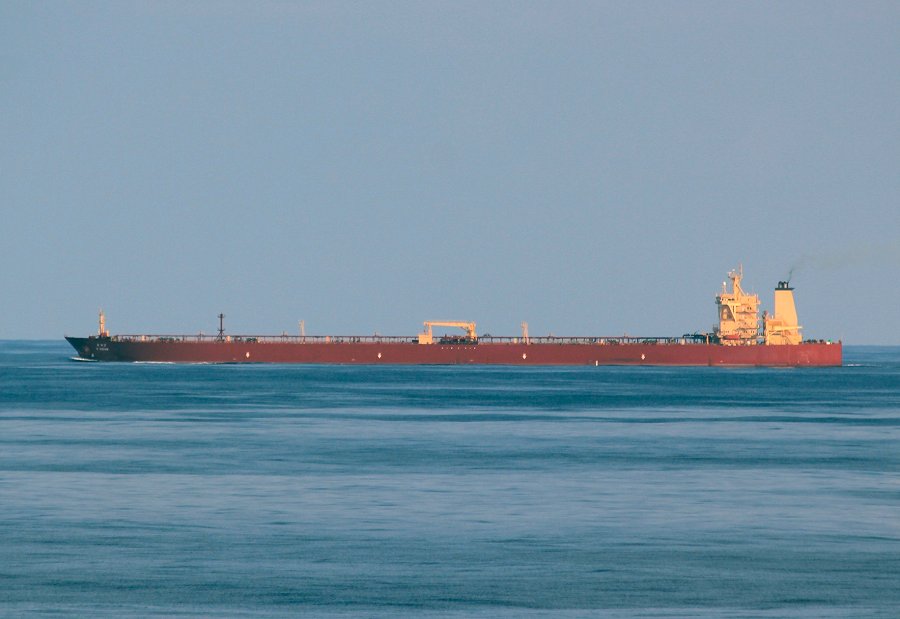

"C. Vision" in South China Sea, February 4th, 2014.
( Photo Copyright Vladimir Knyaz )

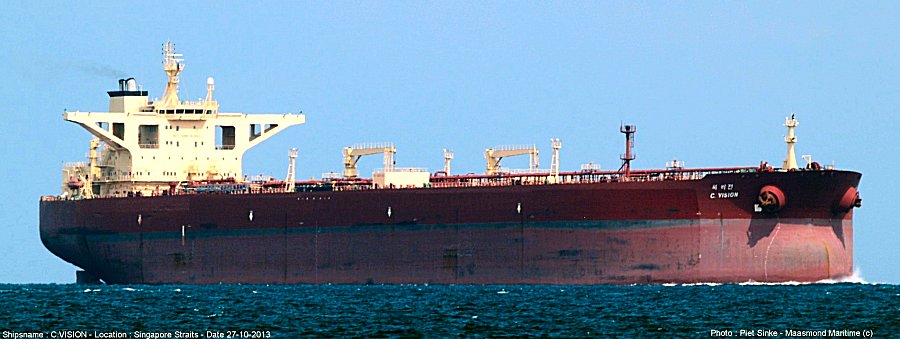

"C. Vision" at Singapore, October 27th, 2013.( Photo Copyright Piet Sinke )

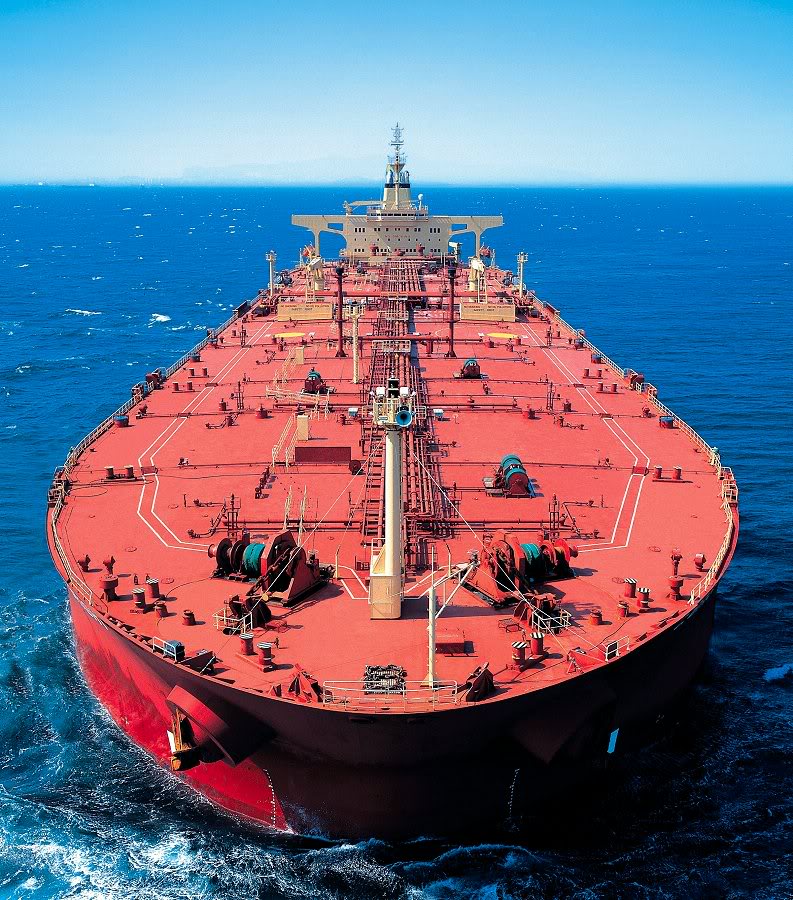

"C. Vision".
( Photo SK Shipping Co., Ltd. )

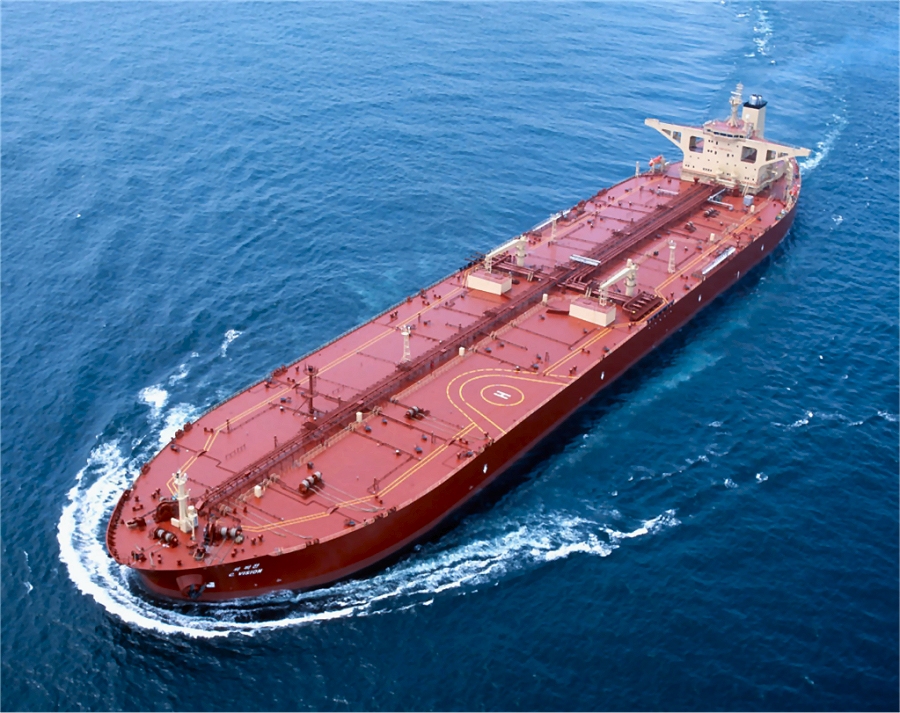

"C. Vision".( Photo SK Shipping Co., Ltd. )

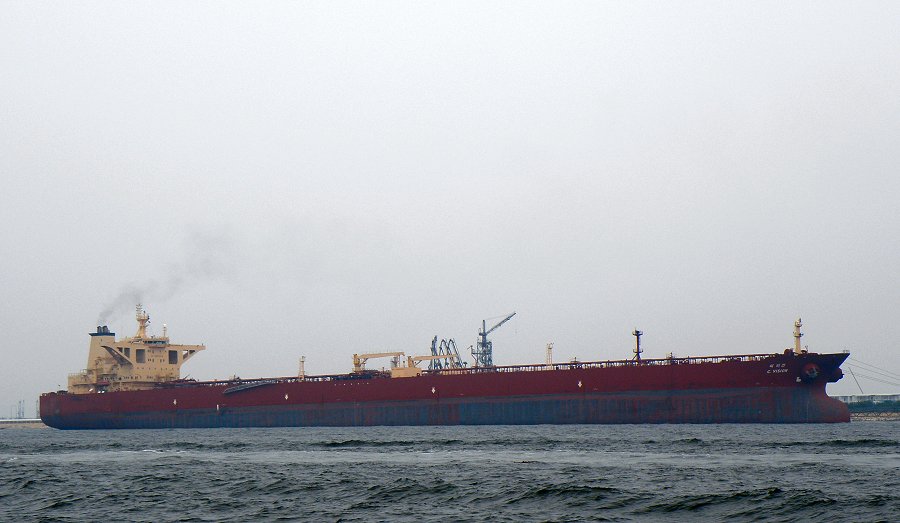

"C. Vision" in Singapore, on 21.10.2010.
( Photo Copyright mara )

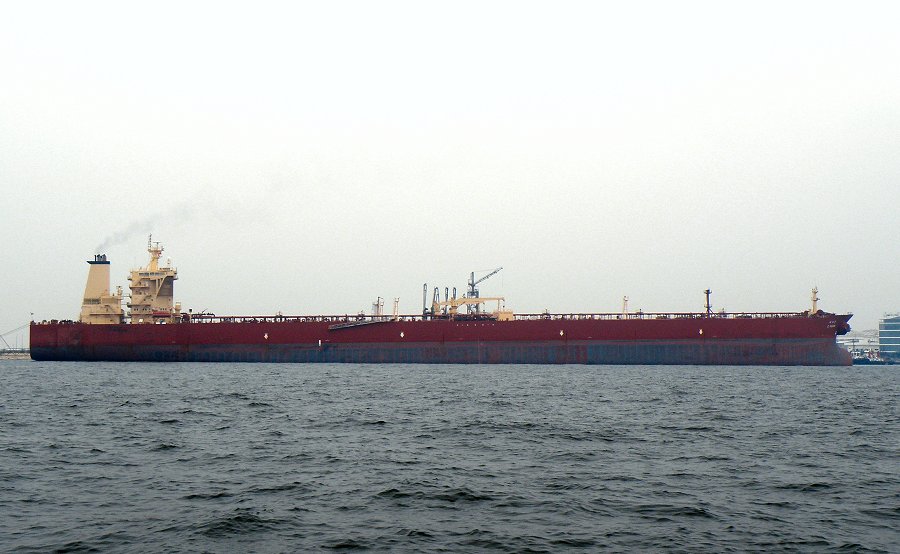

"C. Vision" in Singapore, on 21.10.2010.
( Photo Copyright mara )

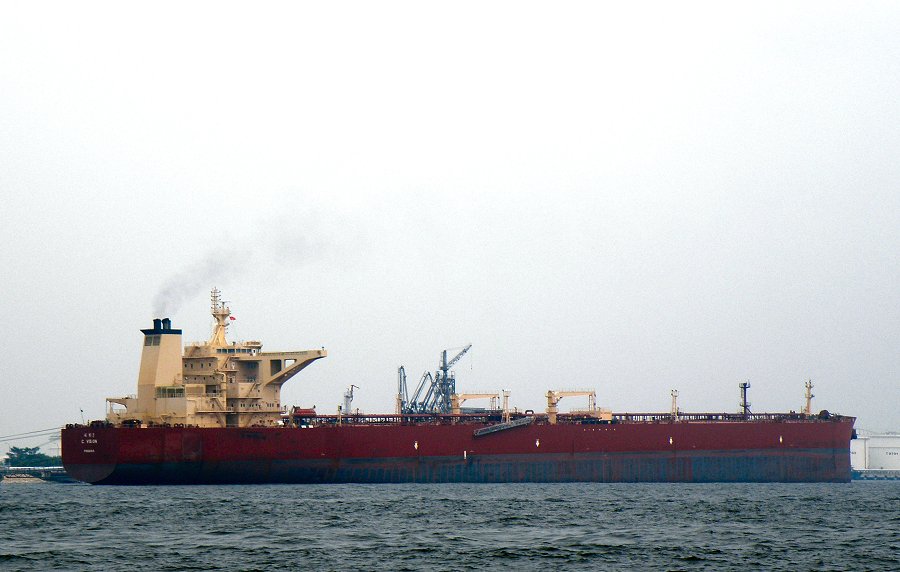

"C. Vision" in Singapore, on 21.10.2010.
( Photo Copyright mara )

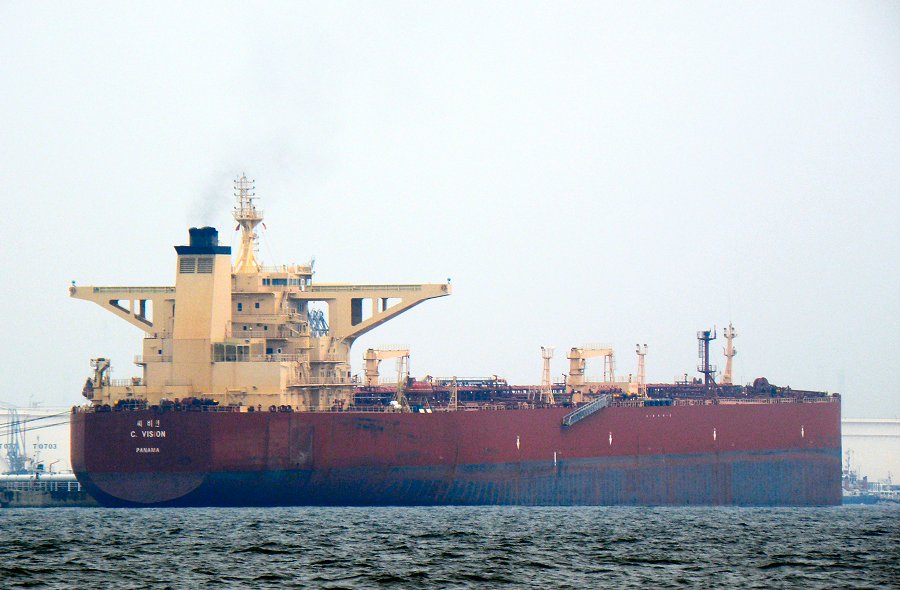

"C. Vision" in Singapore, on 21.10.2010, before departing to Fujairah.
( mara wrote: First time in Singapore in my life, been there just four days and I've got a "bingo": haze from Indonesia.
Lasted just those four! days (20.-23.Oct.2010) and was the worst since 2006. )
( Photo Copyright mara )
The Miramar Ship Index for
|
C. VISION
|
IDNo / IMO
|
9256999
|
Year
|
2004
|
Name
|
C. VISION
|
Flag
|
PAN
|
Owner
|
Visiom Shipholding SA
|
Type
|
Tanker
|
Tons
|
159530
|
DWT
|
317614
|
LOA
|
336,00
|
LPP
|
324,00
|
Beam
|
59,60
|
Dept
|
29,60
|
Draft
|
21,82
|
Machinery
|
1D-16
|
kW
|
29346
|
ShipDesign
|
VLCC
|
Builder
|
Samsung HI Co., Ltd.
|
Yard
|
Koje
|
Yard No
|
1415
|
Country built
|
KOR
|
Keel
|
29.12.2003
|
Launch
|
20.03.2004
|
Completed
|
08.06.2004
|
Subsequent History
|
None
|
End
|
----
|
Disposal Data
|
----
|
Info : Korean Register
General :
Flag
|
PANAMA
|
Class No.
|
0456929
|
Port of Registry
|
PANAMA
|
ITC Tons
|
159,530.00
|
Official No. / Call Sign
|
30045-04-A / H8HY
|
RT on ITC
|
|
Keel Laid
|
2003-12-29
|
Gross Tons
|
159,530.00
|
Launching
|
2004-03-20
|
Deadweight MT
|
314,000.00
|
Built
|
2004-06-08
|
Navigation Area
|
Ocean Going
|
IMO No.
|
9256999
|
Official No.
|
30045-04-A
|
Signal Letters
|
H8HY
|
Radio Installations
|
GMDSS A1+A2+A3
|
Ship's Name(English)
|
C. VISION
|
Ship's Name(Korean)
|
|
Former Names
|
|
Owner
|
VISION SHIPHOLDING S.A.
|
Manager
|
SK Shipping Co., Ltd.
|
Technical Manager
|
SK Shipping Co., Ltd.
|
Port of Registry
|
PANAMA
|
Flag
|
PANAMA
|
Class notations
-Hull
-Ship type
-Special feature
-Machinery
-Refrigerating. Installaion
|
+KRS1
OIL TANKER(DOUBLE HULL) 'ESP' (FBC)
CRUDE CLEAN1 IWS ERS CHA LI
UMA2 PMS BWE VEC1 STCM IGS COW
+KRM1
|
Special Description
|
|
Other Classification
|
DNVGL
|
Tonnnages
-Gross
-Gross on ITC
-Net on ITC
-Deadweight
|
159,530
159,530
105,039
314,000
|
Freeboard Summer(mm)
|
7833
|
Draft(m)
|
21.815
|
Speed(Kt)
|
16.30
|
Propulsion System of Ship
|
M
|
Overall Length(m)
|
336.00
|
Reg. Dimensions(L X B X D)(m)
|
323.96 X 59.60 X 29.60
|
Rule Dimensions(L X B X D)(m)
|
318.35 X 59.60 X 29.60
|
No. of Decks
|
1DK
|
Bottom Framing
|
LF
|
No. of Trans. Bulkheads
|
7 W/T
|
Type of Superstructure
|
|
Kind of Chain
(Required Diameter(mm))
|
Grade III (117.0)
|
Cargo type & Capacity(m3)
|
Liquid : 342759?
|
Tank type & Capacity(m3)
|
FO 8292.1 FW 761.3 WB 7439.7
|
Hatchway Number & Size(m)
|
|
No. & (SWL) of Derricks/Cranes
|
|
No. & Type of Engine
Bore & Stroke
Output kW/rpm
|
1D: 2 SA 6 CY
900X3188
29346/76.0
|
No. & Kind of Boiler
Pressure(kg/cm2)
Heating Surface
|
1Auxiliary Boiler
17.7
|
2Auxiliary Boiler
17.7
|
|
No. & Capacity of Generator
|
3 X AC 1437KVA 450VOLT
|
Shipbuilder
Place of Built
Date of Built
|
SAMSUNG HEAVY IND. CO., LTD.
GEOJE
08.06.2004
|
Date of Conversion
|
|
Hull No.
Date of Keel Laid
Date of Launching
|
HNO.1415
29.12.2003
20.03.2004
|
Engine Builders
Place of Manufacturer
Date of Manufacturer
|
HSD ENGINE Co., Ltd.
CHANGWON
12.2003
|
Boiler Makers
Place of Manufacturer
Date of Manufacturer
|
|
