Hakusan

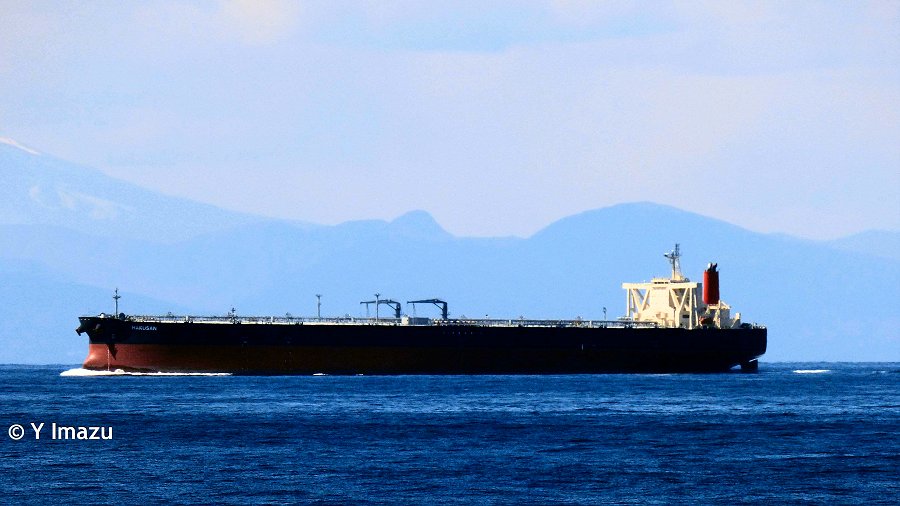

"Hakusan" at West of Nojimazaki, Japan, March 24th, 2015.( Photo Copyright Y, Imazu )

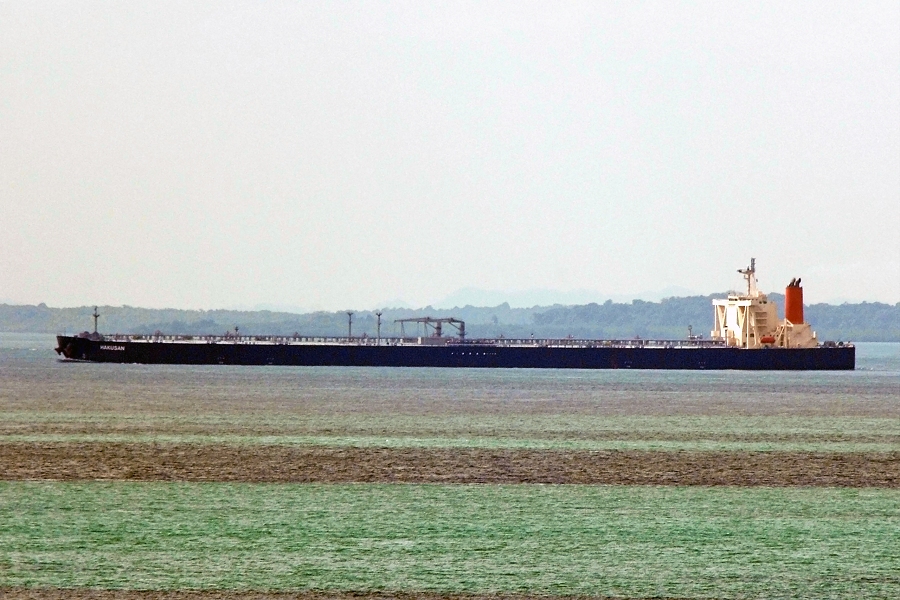

"Hakusan" at Singapore, September 14th, 2013.
( Photo Copyright Jan Ove )

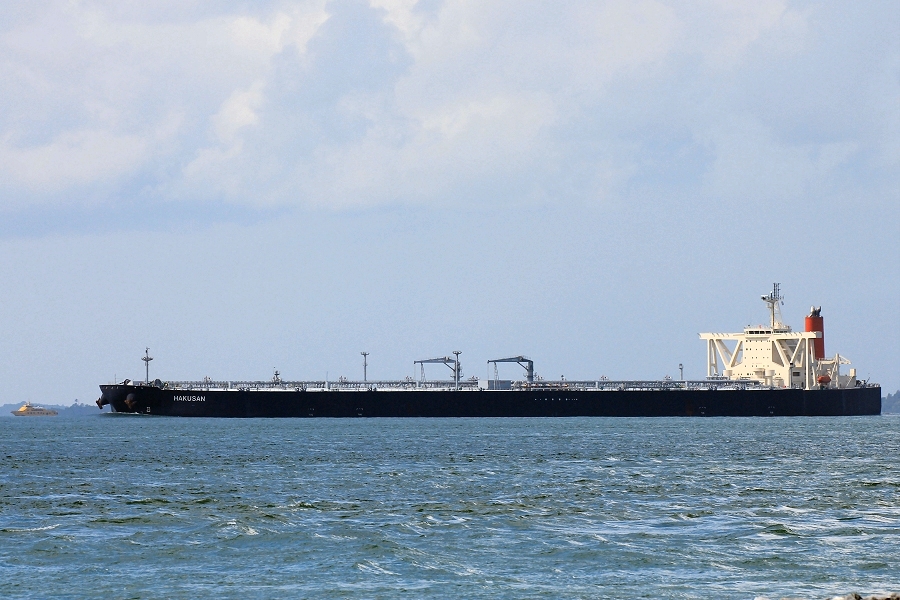

"Hakusan" at Port of Kashima, Japan, July 28th, 2013.( Photo Copyright Reserved )

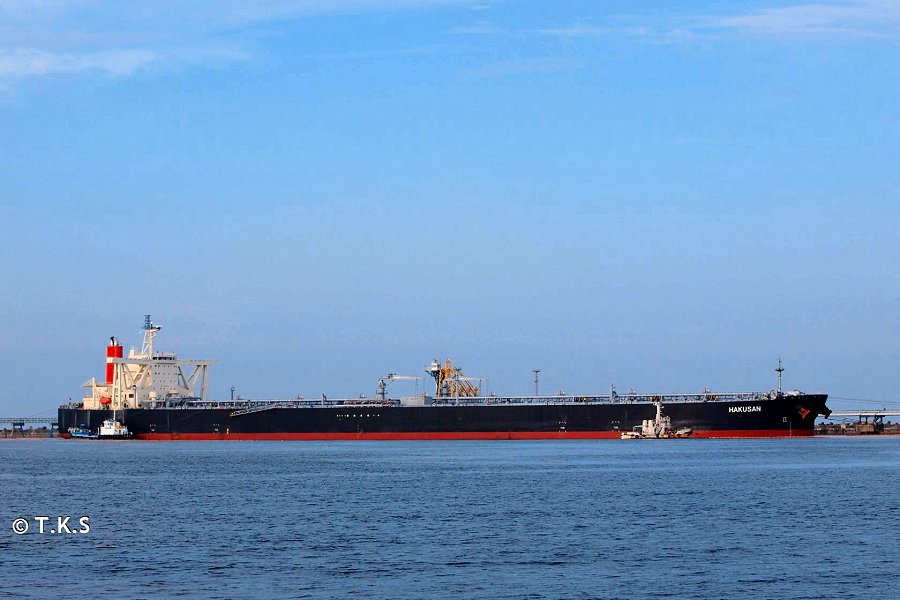

"Hakusan" at Singapore, March 11th, 2012.
( Photo Copyright Martin Klingsick )

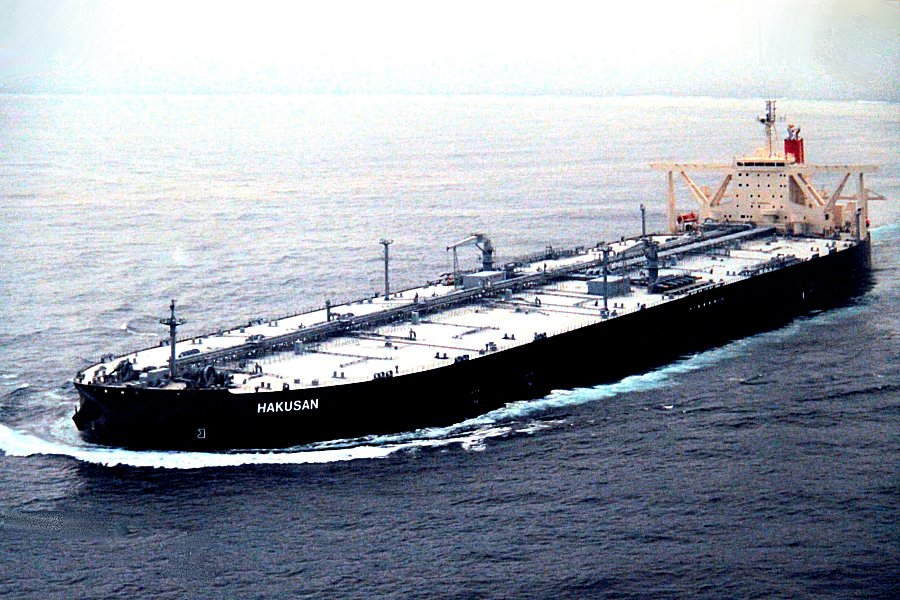

"Hakusan" August 10th, 2011.( Photo Copyright Reserved )
The Miramar Ship Index for
|
HAKUSAN
|
IDNo / IMO
|
9535058
|
Year
|
2011
|
Name
|
HAKUSAN
|
Flag
|
IOM
|
Owner
|
Taurus Transport & Marine SA
|
Type
|
Tanker
|
Tons
|
160059
|
DWT
|
303400
|
LOA
|
333,00
|
LPP
|
324,00
|
Beam
|
60,00
|
Dept
|
29,10
|
Draft
|
20,84
|
Machinery
|
1D-15
|
kW
|
27020
|
ShipDesign
|
VLCC
|
Builder
|
Mitsui Engineering & Shipbuilding Co., Ltd.
|
Yard
|
Nagasaki
|
Yard No
|
2266
|
Country built
|
JPN
|
Keel
|
20.12.2010
|
Launch
|
15.04.2011
|
Completed
|
01.08.2011
|
Subsequent History
|
None
|
End
|
----
|
Disposal Data
|
----
|
Class NK
|
Last update : 16 Oct 2018
|
Classification No. :
|
113534
|
IMO No. :
|
9535058
|
Official No. :
|
742841
|
Signal Letters :
|
2ESF4
|
Flag :
|
Isle of Man
|
Port of Registry :
|
Douglas
|
Ship's Name :
|
HAKUSAN
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
TAURUS TRANSPORT & MARINE S.A.
|
Management Company 1 :
|
--
|
Classification Characters, Notations :
|
NS*(CSR, TOB, PSPC-WBT)(ESP)(IWS)(PSCM) MNS*
|
Descriptive Notes :
|
--
|
Installation Characters :
|
CHG, MPP, LSA, RCF, M0, AFS, BWM
|
Installation Descriptive Notes
|
|
Automatic and Remote Control Systems :
|
The ship has complied with the requirements of Chapter II-1, Part E of SOLAS, "Periodically unattended machinery spaces (UMS)".
|
Special Description :
|
--
|
Other Classification :
|
--
|
Type of Ship -Purpose(intended service) :
|
OIL CARRIER
|
- Certificates - SC/SE/SF :
|
Oil tanker
|
- OPP :
|
Oil tanker
|
- EE :
|
Tanker
|
- SMC/ISSC :
|
--
|
Tonnage Gross (Registered) :
|
160,059
|
Tonnage Net (Registered) :
|
100,926
|
Tonnage Gross (Local) :
|
--
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
160,059
|
Tonnage Net (TM69) :
|
100,926
|
Deadweight :
|
305,350
|
Summer Freeboard (mm) :
|
8,322
|
Summer Draught (m) :
|
20.835
|
Lf (m) :
|
325.980
|
Continuous Max. Speed (kt) (Sea Trial) :
|
16.8
|
Equipment No. :
|
7,247
|
Overall Length (m) :
|
333.000
|
Moulded LxBxD (m) :
|
324.000 x 60.000 x 29.100
|
Registered LxBxD (m) :
|
325.980 x 60.000 x 29.100
|
Cargo Capacity (m3 / No. of Containers, etc.) :
|
L 355,483.00
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 7,990.00 FW 839.00
|
Lifeboats Type, No. & Person :
|
1 2x(36)
|
Rescue Boats Type, No. & Person :
|
1 1x(6) (at combined use for lifeboat)
|
Liferafts Type, No. & Person :
|
1 1x(6) 1 4x(20)
|
Radio Installations :
|
GMDSS A1+A2+A3, SSAS
|
Navigation Equipment :
|
MC, GYRO, HCS, ECDIS, GPS, RDX, RDS, ARPA, AIS, VDR, LOG, LOG(G), ES, ROT, STGTEL, DSL, LRIT
|
No. & Kind of Engines :
|
1DE : 2 SA 7 CY
|
Bore x Stroke (mm) :
|
850.0 x 3,150.0
|
Power (kW) :
|
27,020
|
Revolution (rpm) :
|
76.0
|
Manufacturer :
|
MITSUBISHI HEAVY INDUSTRIES, LTD. KOBE SHIPYARD & MACHINERY WORKS
|
No. & Kind of Boilers :
|
1 AUX WTB
|
Pressure (MPa) :
|
2.16
|
Evaporation :
|
97.77 (ton/h)
|
Manufacturer :
|
MITSUBISHI HEAVY IND., LTD. (MARUKIN SATO SHIPBUILDING & IRON PRODUCTS CO., LTD.)
|
No. & Kind of Boiler 2 :
|
1 AUX EGB
|
Pressure (MPa) :
|
0.59
|
Evaporation :
|
2.97 (ton/h)
|
Manufacturer :
|
MITSUBISHI HEAVY IND., LTD. (MARUKIN SATO SHIPBUILDING & IRON PRODUCTS CO., LTD.)
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 4,400
|
Kind of Propeller Shaft :
|
1C
|
No. & Shaft Diameter (mm) :
|
1 x 900
|
Shipbuilder :
|
MITSUBISHI HEAVY INDUSTRIES, LTD. NAGASAKI SHIPYARD & MACHINERY WORKS
|
Hull No. :
|
2266
|
Date of Keel Lay :
|
21 Dec 2010
|
Date of Launch :
|
15 Apr 2011
|
Date of Build :
|
01 Aug 2011
|
Date of Conversion :
|
--
|
