Ohminesan
And see "OHMINESAN" as : Minesan

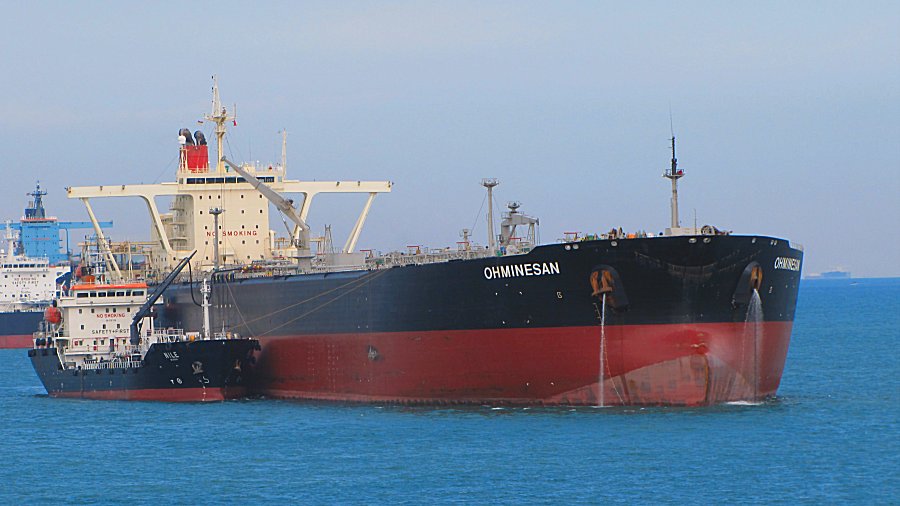

"Ohminesan". Bunkering from bunkervessel "Nile", at Singapore, 2015.( Photo Copyright Gruppman )

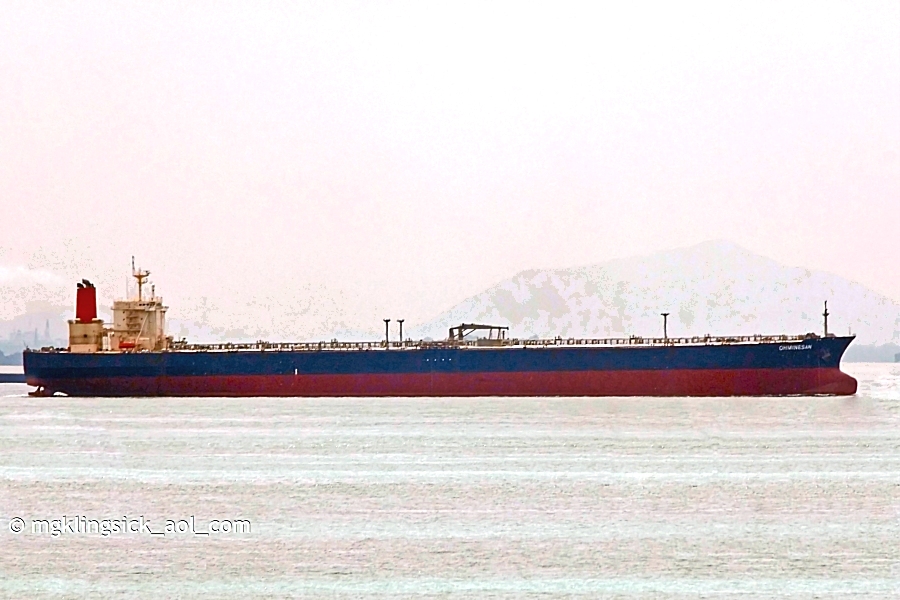

"Ohminesan" at Singapore, November 15th, 2011.( Photo Copyright Martin Klingsick )

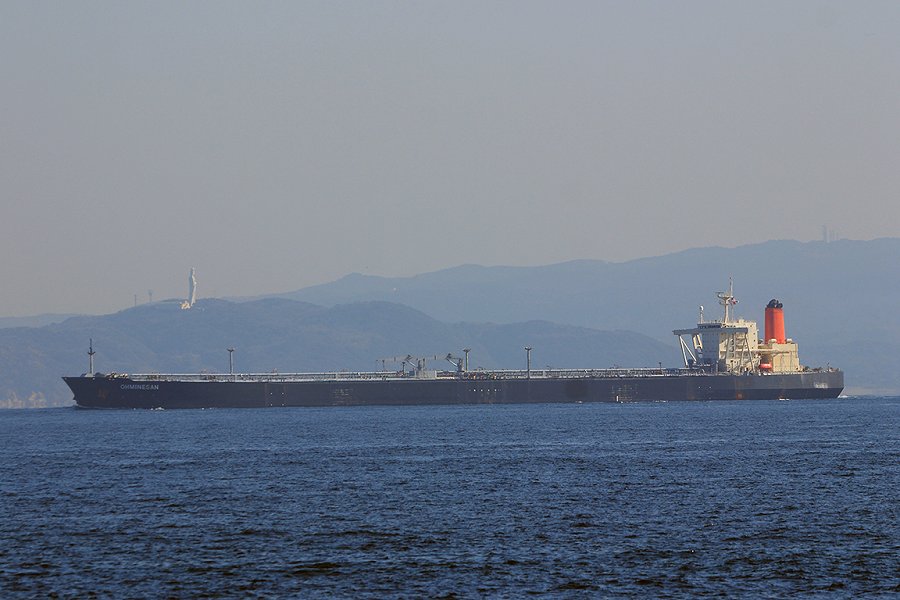

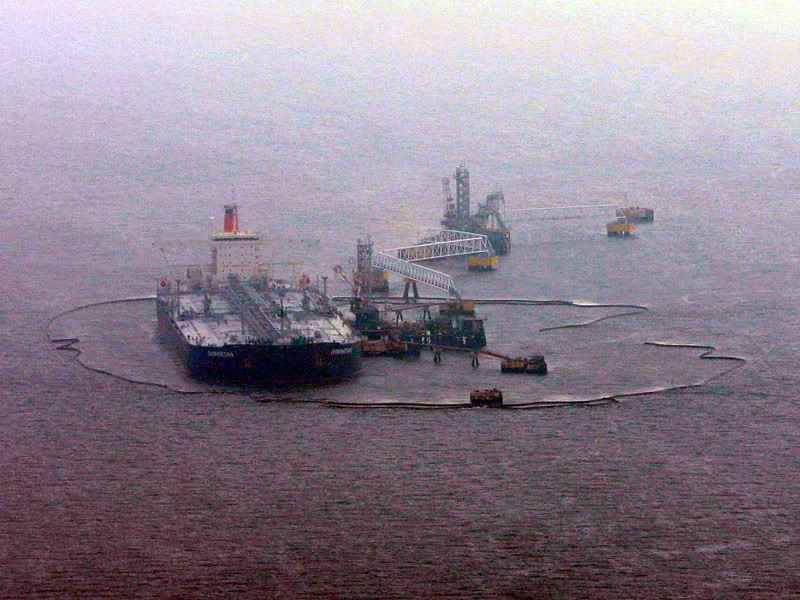

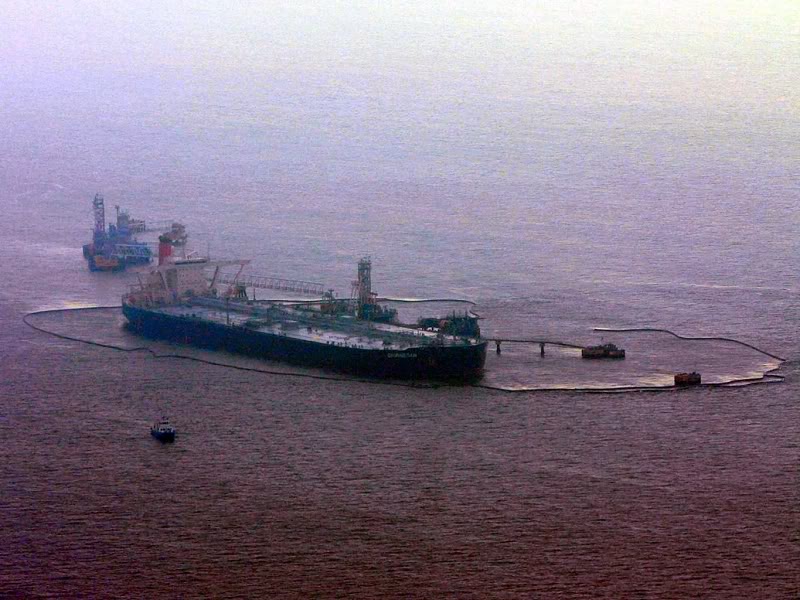

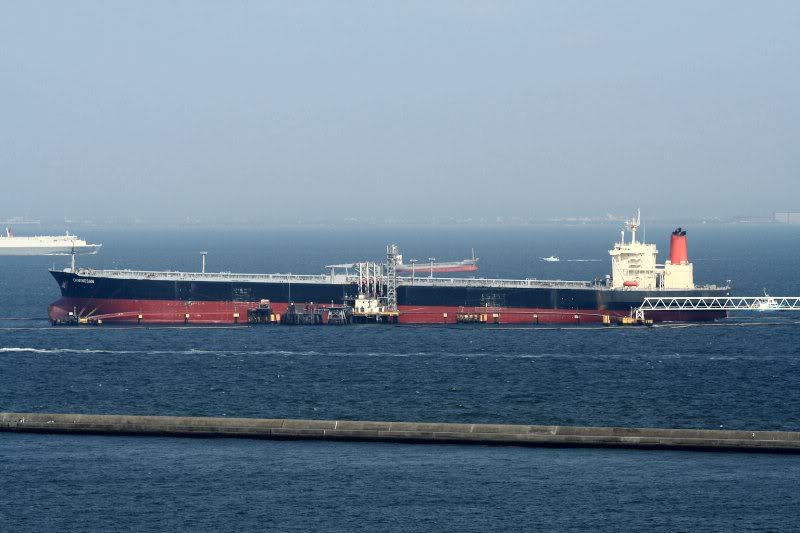

"Ohminesan".
( Copyright reserved )
"Ohminesan".
( Copyright reserved )
"Ohminesan".
( Copyright reserved )
"Ohminesan", in 2006.
( Photo Copyright Manami Ebihara )
The Miramar Ship Index for
|
OHMINESAN
|
IDNo / IMO
|
9124720
|
Year
|
1996
|
Name
|
OHMINESAN
|
Flag
|
PAN
|
Owner
|
Extol Sg., SA
|
Type
|
Tanker
|
Tons
|
151039
|
DWT
|
259984
|
LOA
|
333,00
|
LPP
|
320,00
|
Beam
|
60,00
|
Dept
|
28,00
|
Draft
|
18,89
|
Machinery
|
1D-15
|
kW
|
21688
|
ShipDesign
|
VLCC
|
Builder
|
Hitachi Zosen
|
Yard
|
Ariake
|
Yard No
|
4892
|
Country built
|
JPN
|
Keel
|
29.01.1996
|
Launch
|
25.05.1996
|
Completed
|
28.06.1996
|
Subsequent History
|
2001 OHMINESAN - Gemini Shipholding Corp.
2007 OHMINESAN - Extol Sg SA
2011 OHMINESAN - Extol Sg SA
2012 MINESAN - Extol Sg., SA
|
End
|
2012
|
Disposal Data
|
Scrapped at Alang 30.01.2012, beached 08.02.2012. [ By Shree Ram Group ]
|
ClassNK Register of Ships
|
Last update : 22 November 2005
|
Classifiction No.
|
962073
|
IMO No.
|
9124720
|
Ship's Name
|
OHMINESAN
|
Former Names
|
-----
|
Registered Owners
|
GEMINI SHIPHOLDING CORPORATION
|
Managing Company
|
INTERNATIONAL ENERGY TRANSPORT CO., LTD.
|
Flag
|
PANAMANIAN
|
Port of Registry
|
PANAMA
|
Official No.
|
23168-96-C
|
Signal Letters
|
3FHS6
|
Classification Characters
|
NS* ( TOB ) ( ESP ) / MNS*
|
Descriptive Notes
|
-----
|
Installations Characters
|
CHG, MPP, LSA, RCF, M0.B, BRS
|
Special Description
|
-----
|
Other Classification
|
-----
|
Last Special Survey
|
SS 08-2001
|
SMC
|
Issued by ClassNK
|
ISPS
|
|
Tonnage Gross
|
-----
|
Tonnage Net
|
-----
|
Tonnage Gross (TM69)
|
151039
|
Tonnage Net (TM69)
|
83992
|
Tonnage Gross (SOLAS)
|
-----
|
Deadweight
|
267812
|
Freeboard Summer (mm)
|
5719
|
Draught (m)
|
19.330
|
Trial Speed (kt)
|
18.6
|
Sea Speed (kt)
|
16.2
|
Type of Ship and Purpose
|
M OIL CARRIER
|
Position of Machinery Room
|
MACH AFT
|
No. of Decks
|
1
|
Framing
|
LF
|
Equipment No.
|
6889
|
Overall Length (m)
|
321.11
|
Registered L x B x D (m)
|
321.11 x 60.00 x 28.00
|
Moulded L x B x D (m)
|
321.11 x 60.00 x 28.00
|
Length of Deck Erections (m)
|
-----
|
Cargo Capacity (m3)
|
L 319115
|
(Bale, Grain, Liquid, Refrigerated Space, Vehicles, TEU)
|
|
No. & ( L x B ) (m) of Hatchways
|
-----
|
No. x SWL ( ton ) of Derricks or Cranes
|
2(20) 1(7)
|
No. of Passengers
|
-----
|
No. of Bulkheads
|
7 WT
|
Capacity of Tanks (m3)
|
FO 7060 FW 709 WB 109639
|
Construction & Equipment of MPP
|
|
-- Cargo Area
|
DOUBLE HULL, SBT,PL,COW
|
-- Machinery Spaces
|
OFE
|
-- Chemical Tank
|
-----
|
Lifeboats - Type, No. & Person
|
1 1x(30) 1 1x(30)
|
Rescue Boats - No. & Person
|
1x(6)
|
Liferafts - Type, No. & Person
|
I 4x(15) 1x(6)
|
Radio Installations
|
GMDSS A1+A2+A3
|
Navigation Equipment
|
Gc Ap Lrn Rdr Ds
|
No. & Kind of Engines
|
D : 2 SA 7 CY
|
Bore x Stroke (mm)
|
800 x 3056
|
Power
|
34650 (25485)
|
rpm
|
79
|
Manufacturer
|
HITACHI ZOSEN CORPORATION SAKURAJIMA WORKS
|
No. & Kind of Boilers
|
1 AUX WTB
|
Pressure
|
22.0kg/cm2 (2.16MPa)
|
Manufacturer
|
MITSUBISHI HEAVY INDUSTRIES, LTD. NAGASAKI SHIPYARD & MACHINERY WORKS
|
No. & Kind of Boilers No.2
|
1 AUX EGB
|
Pressure
|
5.0kb/cm2 (0.49MPa)
|
Manufacturer
|
MITSUBISHI HEAVY INDUSTRIES, LTD. NAGASAKI SHIPYARD & MACHINERY WORKS
|
No. & Capacity of Generators
|
4 AC 4063
|
Kind of Propeller Shaft
|
1C
|
Shipbuilder
|
HITACHI ZOSEN CORPORATION ARIAKE WORKS
|
Hull No.
|
4892
|
Date of Build
|
07-1996
|
Date of Launch
|
04-1996
|
Date of Conversion
|
-----
|
