Tokitsu Maru (2)

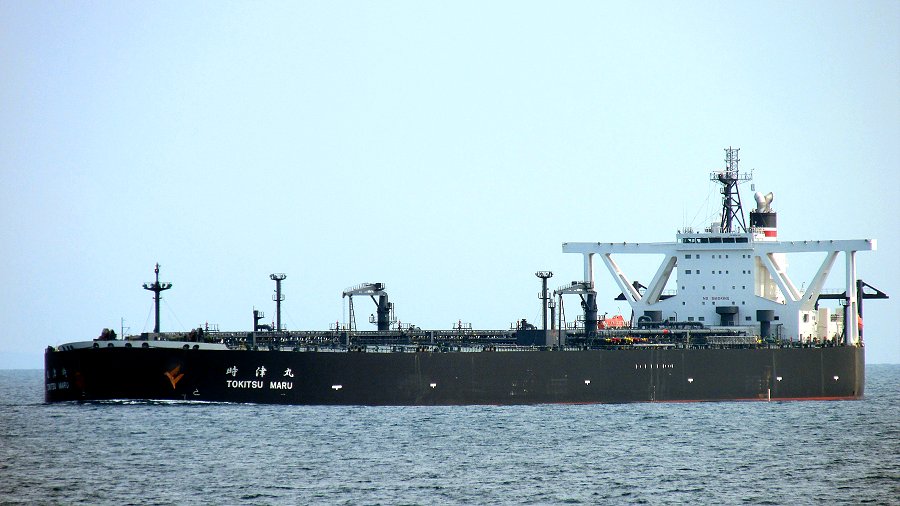

"Tokitsu Maru" fully loaden at the heading for the South China Sea after passing the Singapore Strait, May 6th, 2017.( Photo Copyright Andreas Schlatterer )

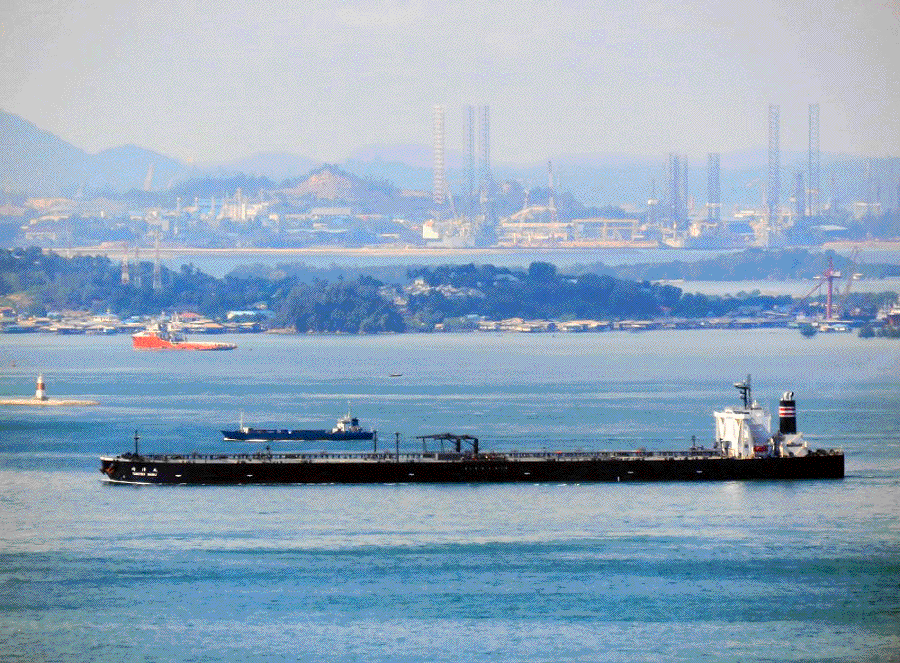

"Tokitsu Maru", at Singapore, May 23rd, 2016.( Photo Copyright Tsarik Ruslan )

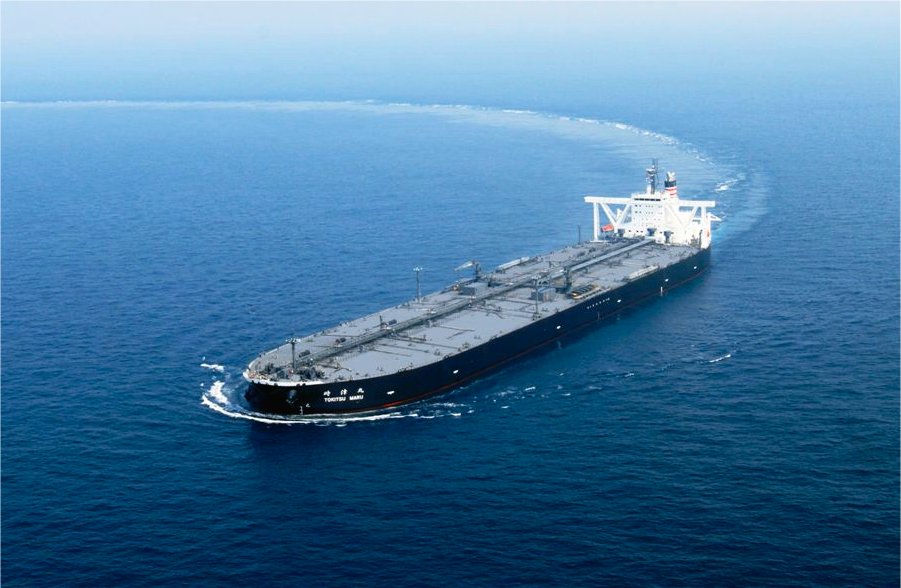

"Tokitsu Maru", on sea Tials.

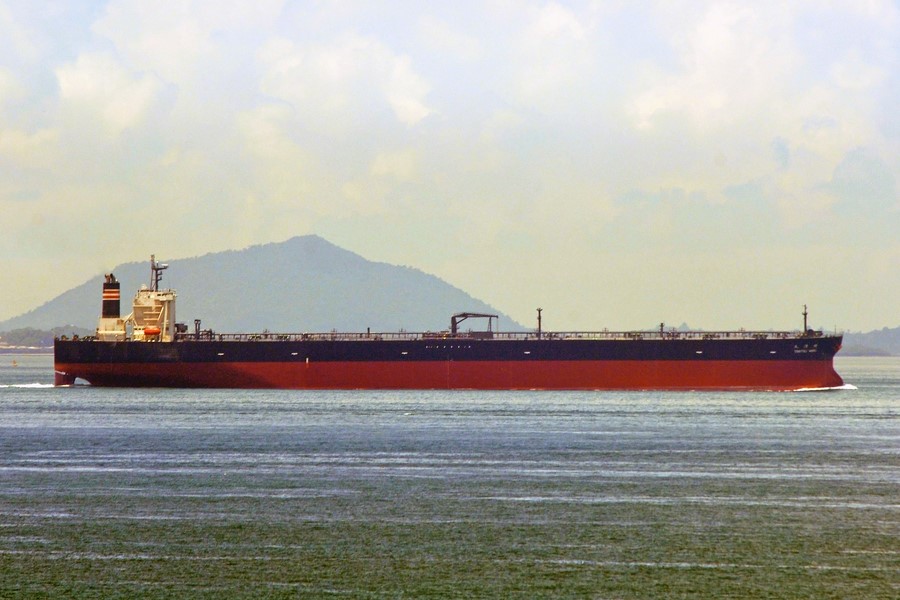

"Tokitsu Maru", at Singapore, April 16th, 2012.
( Photo Copyright Martin Klingsick )

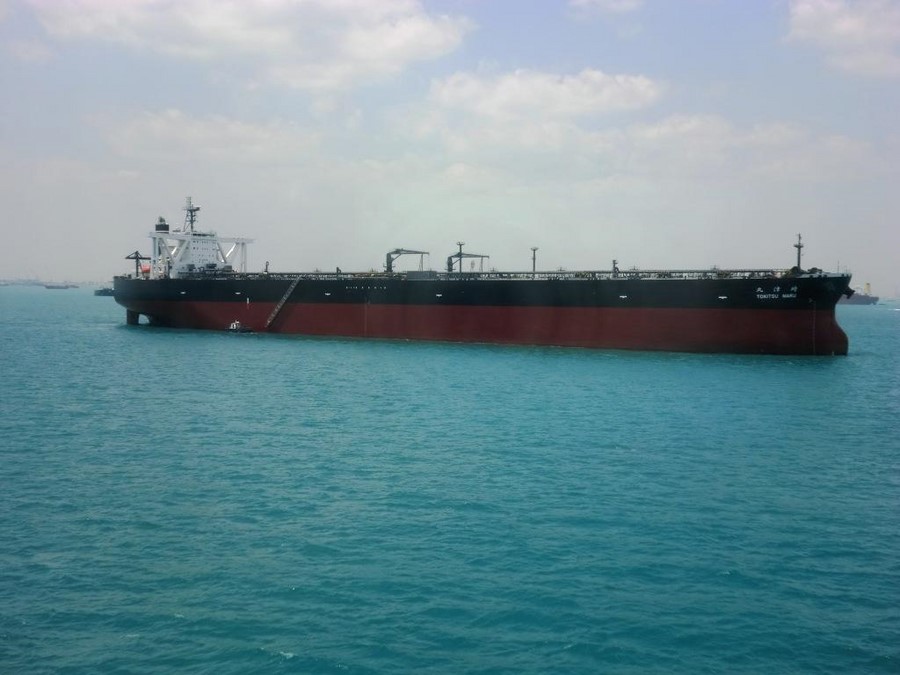

"Tokitsu Maru", at West Jurong Anchorage area, March 5th, 2014.
( Photo Copyright M.J. Chow )
The Miramar Ship Index for
|
TOKITSU MARU
|
IDNo / IMO
|
9568809
|
Year
|
2011
|
Name
|
TOKITSU MARU
|
Flag
|
JPN
|
Owner
|
Nippon Yusen Kaisha
|
Type
|
Tanker
|
Tons
|
159963
|
DWT
|
305484
|
LOA
|
333,00
|
LPP
|
324,00
|
Beam
|
60,00
|
Dept
|
29,10
|
Draft
|
20,84
|
Machinery
|
1D-15.5
|
kW
|
27020
|
ShipDesign
|
VLCC
|
Builder
|
Mitsubishi Heavy Ind., Ltd.,
|
Yard
|
Nagasaki
|
Yard No
|
2273
|
Country built
|
JPN
|
Keel
|
18.06.2010
|
Launch
|
20.12.2010
|
Completed
|
25.04.2011
|
Subsequent History
|
None
|
End
|
----
|
Disposal Data
|
----
|
ClassNK Register of Ships
|
Last update : 29 March 2013
|
Classification No. :
|
111809
|
IMO No. :
|
9568809
|
Official No. :
|
141385
|
Signal Letters :
|
7JIV
|
Flag :
|
Japanese
|
Port of Registry :
|
Tokyo
|
Ship's Name :
|
TOKITSU MARU
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
NIPPON YUSEN KABUSHIKI KAISHA
|
Management Company 1 :
|
--
|
Classification Characters, Notations :
|
NS*(CSR, TOB, PSPC-WBT)(ESP)(IWS)(PSCM)
MNS*(M0)
|
Descriptive Notes :
|
--
|
Installation Characters :
|
CHG, MPP, LSA, CAA, RCF, M0, AFS
|
Installation Descriptive Notes
|
|
Special Description :
|
--
|
Other Classification :
|
--
|
Last Special Survey :
|
--
|
Tonnage Gross (Registered) :
|
159,963
|
Tonnage Net (Registered) :
|
--
|
Tonnage Gross (Local) :
|
159,963
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
159,963
|
Tonnage Net (TM69) :
|
100,799
|
Deadweight :
|
305,484
|
Summer Freeboard (mm) :
|
8,322
|
Summer Draught (m) :
|
20.835
|
Lf (m) :
|
325.980
|
Continuous Max. Speed (kt) (Sea Trial) :
|
--
|
Purpose of Ship :
|
M OIL CARRIER
|
Equipment No. :
|
7,247
|
Overall Length (m) :
|
333.000
|
Moulded LxBxD (m) :
|
324.000 x 60.000 x 29.100
|
Registered LxBxD (m) :
|
328.090 x 60.000 x 29.100
|
Cargo Capacity (m3 / No. of Containers, etc.) :
|
L 355,528
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 8,057 FW 839 WB 102,798
|
Lifeboats Type, No. & Person :
|
1 2x(34)
|
Rescue Boats Type, No. & Person :
|
1 1x(6) (at combined use for lifeboat)
|
Liferafts Type, No. & Person :
|
1 1x(6) 1 2x(15) 1 2x(20)
|
Radio Installations :
|
GMDSS A1+A2+A3, SSAS
|
Navigation Equipment :
|
MC, GYRO, HCS, TCS, ECDIS, GPS, RDX, RDS, ARPA, AIS, VDR, LOG, LOG(G), ES, ROT, STGTEL, DSL, LRIT
|
No. & Kind of Engines :
|
1D : 2 SA 7 CY
|
Bore x Stroke (mm) :
|
850.0 x 3,150.0
|
Power (kW) :
|
27,020
|
Revolution (rpm) :
|
76.0
|
Manufacturer :
|
MITSUBISHI HEAVY INDUSTRIES, LTD. KOBE SHIPYARD & MACHINERY WORKS
|
No. & Kind of Boilers :
|
1 AUX WTB
|
Pressure (MPa) :
|
2.16
|
Evaporation :
|
97.76 (ton/h)
|
Manufacturer :
|
MITSUBISHI HEAVY IND., LTD. (MARUKIN SATO SHIPBUILDING & IRON PRODUCTS CO., LTD.)
|
No. & Kind of Boiler 2 :
|
1 AUX EGB
|
Pressure (MPa) :
|
0.59
|
Evaporation :
|
2.98 (ton/h)
|
Manufacturer :
|
MITSUBISHI HEAVY IND., LTD. (MARUKIN SATO SHIPBUILDING & IRON PRODUCTS CO., LTD.)
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 4,400
|
Kind of Propeller Shaft :
|
1C
|
No. & Shaft Diameter (mm) :
|
1 x 900
|
Shipbuilder :
|
MITSUBISHI HEAVY INDUSTRIES, LTD. NAGASAKI SHIPYARD & MACHINERY WORKS
|
Hull No. :
|
2273
|
Date of Keel Lay :
|
18 Jun 2010
|
Date of Launch :
|
20 Dec 2010
|
Date of Build :
|
25 Apr 2011
|
Date of Conversion :
|
--
|
